The advantages of XZ680A HDD horizontal directional drilling machine
1. The rack pinion push and pull. The transmission is smooth and reliable. The power head spindle floating improve the service life of drill pipe thread;
2. The line-control proportion of walking system ensures the security of the walk;
3. The slurry flow shift stepless speed regulation system is more convenient to adjust the flow of the slurry, save the slurry and reduce the environmental pollution caused by slurry flowing;
4. The push-pull pressure shift stepless speed regulation system adjusts the push-pull pressure according to different working conditions, fast and convenient, which also can protect the drill pipe thread from being damaged.
5. 45 ° rotating cabin can be realized, which make the tractor driver in driving indoor observe the vice action more conveniently. At the meantime, it improves the interior assembly and increases the radio audio and USB port and improve operation comfort.
XZ680A HDD horizontal directional drilling machine Catalog
1. The introduction of the technology
2. The main technical parameters
3. The main parts subsidiary
4. The whole machine appearance and transportation
5. The accessory technical documents
1. Technical specification
Product model: XZ680A HDD horizontal directional drilling machine
Manufacturer: XCMG GROUP
XZ680A HDD drilling machine is one-piece full load type design, which adopt the hydraulic pilot control and load sensitive control and a number of advanced control technology and the company's proprietary technology. The main performance parameters and control technology has reached the domestic advanced level. Hydraulic system, transmission system, reducer, electric control system and other main components choose the brand name products at home and abroad. The quality is reliable.
One.The introduction of the technology
1. Chassis
Using steel tracks, South Korea Tongmyong walking speed reducer, traction, venue adaptable, stable and reliable performance.
Chain tread 3165 mm
Track Shoe Length 3930 mm
gauge of tracks 1825 mm
Creeper tread width 450 mm
Roller number 7piece×2
Walking speed reducer South Korea Tongmyong TM22VC×2
Driving force 123kN
Climbing Capacity 30%
Walking speed 2.5km/h
Ground pressure 67kPa
The total quality of work 21T
2. The engine system
The Dongfeng Cummins engine inter-cooled turbocharged. Emissions meet the emission standards II and electronically- control throttle.
Engine Model 6LTAA8.9-C325
Rated power 239kW
Maximum engine torque 1230 N·m /（1400r/min）
Rated rotor speed 2200 r/min
Meet the emission standard standards II
Fuel tank capcity 425L
3. The hydraulic system
Using the load sensitive control, constant power system, pressure to cut off, the electro-hydraulic proportional control and several advanced control technologies. The imported components, which is reliable in quality.
Triple main pump SAUER H1P-130+ ER100B+ FR074B
Manual reset relay AMCA APV-22 + APV-22
Slurry pump valve AMCA APV-22
Oil Tank Capacity 750L
4. Power head
Push and pull a drill through the gear rack and complete. Power head spindle floating device effectively protect drill pipe thread. Variable motor can achieve high-speed push and pull. Push pull size can be adjusted according to the requirements of the construction, the protection of the drill pipe.
Power head rotation system
Rotating system flow 277L/min
Pressure 270bar
Motor Huade A6V107×2
Reduction box Brevini 2×ED2090/Bonfiglioli 2×307L2
Maximum swivel torque 28250Nm（Option）
Maximum rotative speed 100r/min
Power head push and pull system
Push and pull system flow 371L/min
Pressure 260bar
Manual reset relay AMCA APV-22/SAUER PVG100
Motor Huade A6V107×4
Reduction box Brevini 2×ED2090/Bonfiglioli 2×307L2
The biggest push pull 725kN
The biggest push and pull speed 32m/min
Maximum swivel torque 28250N·m
The maximum stroke power head 6600mm
5. Electrical system
In view of the horizontal directional drilling construction technology, the application of advanced intelligent control technology, CAN bus technology, using imported high reliability of the controller. To optimize the display in the instrument location, use the larger instrument, easy to observe. Walking wire control can realize stepless speed regulation, safe and convenient operation.
System Voltage DC24V
Controller Rexroth RC28-14
Push and pull rotation handle SAUER MCH22
6. Drill stand
High strength alloy steel drill stand and slide drilling. Angle adjustment is convenient.
Drill sliding distance 2500 mm
Drill stand Angle adjustment 10～18°
7. Vice
Rig is equipped with powerful shackle vise. Front and rear vice are relatively easy- slip. It is easy to replace canine teeth of maintenance.
Clamp force 1120kN
Maximum shackle torque 58900N·m
Rear vice rotation Angle 25°
Vice sliding distance 200mm
8. The slurry pump system
For construction of Hengyang slurry pump equipped with mud and slurry, which guarantee the construction smoothly. There are four adjustable gear speed which can also be adjusted the flow of the slurry pump and provide better operating experience.
Gear 4 speed
The maximum flow of slurry 600L/min
The maximum pressure of slurry 100bar
9. Cab
Rotating control cab, adjustable seats, equipped with air conditioning, greatly improved the operation comfort level of drilling rig, interior lights, windshield wipers, the front glass can be doubled.
Width of the cabin 1000mm
Length of the cabin 1800mm
The rotation angle 45°
10. Lorry crane
Random configuration 2T XCMG lorry crane and manual operation stable.
Model GSQ2SK1Q
Max lifting weight 2T
The farthest distance operation 5.67m
Max. Lifting Moment 4T·m
Two.The main technical parameters
| Item | Technical parameters | |
| Engine | Producer | Cummins Engien CO.,Ltd |
| Model | 6LTAA8.9-C325 | |
| Rated power | 239 kW / 2200 r/min | |
| Power head push and pull | Type | Pinion and rack drive |
| Rated pulling/feeding force | 725/725 kN | |
| Running speed of power unit | 0～32 m/min | |
| Rotation | Type | Double-motor gear transmission |
| Max.torque of power unit | 28250 N·m | |
| Rotation speed of power unit | 100 r/min | |
| Drill stem | Diameter | φ102 mm |
| Length (single piece) | 6000mm | |
| Adjustment angle | 10～18° | |
| Travel Driving | Type | Self-propelled steel tracks |
| Travel speed | 2.5 km/h | |
| Slurry pump | Type | 600L/min,hydraulic drive |
| Total weight | 21T | |
| Dimensions | 11610×2800×3115mm | |
Three .The main parts subsidiary
1. The core parts subsidiary:
| Name | Manufacturer |
| Engine | Dongfeng Cummins Engine |
| Main pump | SAUER |
| Auxiliary pump | Tianjin |
| Manual reset relay | SAUER/AMCA |
| Hand shank | SAUER |
| Controller | German Rexroth |
| Power head motor | Beijing Huade |
| Power head speed reducer | Bonfiglioli/Brevini |
| Power head bearing | ZWZ |
| Lorry-mounted crane | XCMG GROUP |
| Track | Hubei Xian Group |
| Walking motor, reducer | South Korea Tongmyong Copmay |
2. The options are as follows ( With reference to the contract)
1) Drill stem:
| Name | Type | Specification | Remarks |
| Drill stem | Welded type(S135) | φ102mm×6m | NC38Clasp Type |
2) Back to the expansion device:
| Name | Type | Specification | Remarks | |
| Back to the expansion device | Squeeze expanding type | φ450mm | | |
| φ600mm | ||||
| φ750mm | ||||
| φ900mm | ||||
| φ1050mm | ||||
| φ1200mm | ||||
| Flow port type | φ450mm | |||
| φ600mm | ||||
| φ750mm | ||||
| φ900mm | ||||
| φ1050mm | ||||
| φ1200mm | ||||
| φ1300mm | ||||
3) Accessories:
| Name | Type | Specification | Remarks |
| Accessories | Pilot guide bit | 102 | |
| Guide plate | 102 | ||
| Positive pull head | 102 | ||
| Negative pull head | 102 | ||
| Transfer case | 80T | ||
| Short sub | 102 |
4) Others:
| Name | Specification | Remarks | |
| Slurry System | Slurry mixing system | 5 cubic | |
| Instrument | Exploratory apparatus | F5 | DCI |
| GL600 | Gemdale | ||
| GL700 | |||
| Detecting instrument | 8000 | Reddy | |

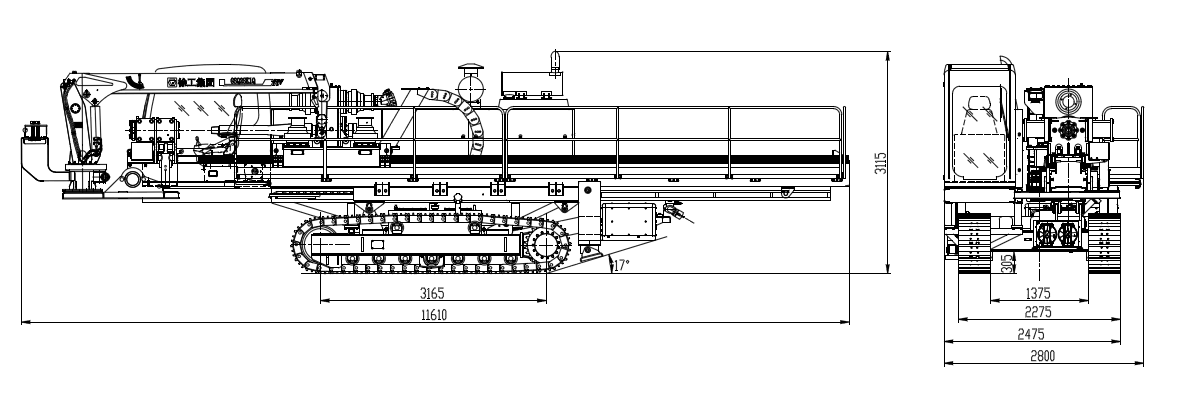

4. The whole machine appearance and transportation
Overall dimension 11610×2800×3115mm
Shipping weight (Don’t include drill pipe, drill) 21T
5. The accessory technical documents
The following technical documents are provided for XZ680A horizontal directional drilling rig
Certificate of conformity
XZ680A HDD horizontal directional drilling machine operation instructions
6LTAA8.9-C325 engine operation instructions and warranty card
BW-600 slurry pump operation instructions
Wearing parts and spare parts list, the accessory tools list
Engineering vehicle air conditioning general specification
Note: The products will be improved along with the technical advancement and the difference will be defined during ordering.

FOUR PHOTOS
The advantages of XZ680A HDD horizontal directional drilling machine
1. The rack pinion push and pull. The transmission is smooth and reliable. The power head spindle floating improve the service life of drill pipe thread;
2. The line-control proportion of walking system ensures the security of the walk;
3. The slurry flow shift stepless speed regulation system is more convenient to adjust the flow of the slurry, save the slurry and reduce the environmental pollution caused by slurry flowing;
4. The push-pull pressure shift stepless speed regulation system adjusts the push-pull pressure according to different working conditions, fast and convenient, which also can protect the drill pipe thread from being damaged.
5. 45 ° rotating cabin can be realized, which make the tractor driver in driving indoor observe the vice action more conveniently. At the meantime, it improves the interior assembly and increases the radio audio and USB port and improve operation comfort.
XZ680A HDD horizontal directional drilling machine Catalog
1. The introduction of the technology
2. The main technical parameters
3. The main parts subsidiary
4. The whole machine appearance and transportation
5. The accessory technical documents
1. Technical specification
Product model: XZ680A HDD horizontal directional drilling machine
Manufacturer: XCMG GROUP
XZ680A HDD drilling machine is one-piece full load type design, which adopt the hydraulic pilot control and load sensitive control and a number of advanced control technology and the company's proprietary technology. The main performance parameters and control technology has reached the domestic advanced level. Hydraulic system, transmission system, reducer, electric control system and other main components choose the brand name products at home and abroad. The quality is reliable.
One.The introduction of the technology
1. Chassis
Using steel tracks, South Korea Tongmyong walking speed reducer, traction, venue adaptable, stable and reliable performance.
Chain tread 3165 mm
Track Shoe Length 3930 mm
gauge of tracks 1825 mm
Creeper tread width 450 mm
Roller number 7piece×2
Walking speed reducer South Korea Tongmyong TM22VC×2
Driving force 123kN
Climbing Capacity 30%
Walking speed 2.5km/h
Ground pressure 67kPa
The total quality of work 21T
2. The engine system
The Dongfeng Cummins engine inter-cooled turbocharged. Emissions meet the emission standards II and electronically- control throttle.
Engine Model 6LTAA8.9-C325
Rated power 239kW
Maximum engine torque 1230 N·m /（1400r/min）
Rated rotor speed 2200 r/min
Meet the emission standard standards II
Fuel tank capcity 425L
3. The hydraulic system
Using the load sensitive control, constant power system, pressure to cut off, the electro-hydraulic proportional control and several advanced control technologies. The imported components, which is reliable in quality.
Triple main pump SAUER H1P-130+ ER100B+ FR074B
Manual reset relay AMCA APV-22 + APV-22
Slurry pump valve AMCA APV-22
Oil Tank Capacity 750L
4. Power head
Push and pull a drill through the gear rack and complete. Power head spindle floating device effectively protect drill pipe thread. Variable motor can achieve high-speed push and pull. Push pull size can be adjusted according to the requirements of the construction, the protection of the drill pipe.
Power head rotation system
Rotating system flow 277L/min
Pressure 270bar
Motor Huade A6V107×2
Reduction box Brevini 2×ED2090/Bonfiglioli 2×307L2
Maximum swivel torque 28250Nm（Option）
Maximum rotative speed 100r/min
Power head push and pull system
Push and pull system flow 371L/min
Pressure 260bar
Manual reset relay AMCA APV-22/SAUER PVG100
Motor Huade A6V107×4
Reduction box Brevini 2×ED2090/Bonfiglioli 2×307L2
The biggest push pull 725kN
The biggest push and pull speed 32m/min
Maximum swivel torque 28250N·m
The maximum stroke power head 6600mm
5. Electrical system
In view of the horizontal directional drilling construction technology, the application of advanced intelligent control technology, CAN bus technology, using imported high reliability of the controller. To optimize the display in the instrument location, use the larger instrument, easy to observe. Walking wire control can realize stepless speed regulation, safe and convenient operation.
System Voltage DC24V
Controller Rexroth RC28-14
Push and pull rotation handle SAUER MCH22
6. Drill stand
High strength alloy steel drill stand and slide drilling. Angle adjustment is convenient.
Drill sliding distance 2500 mm
Drill stand Angle adjustment 10～18°
7. Vice
Rig is equipped with powerful shackle vise. Front and rear vice are relatively easy- slip. It is easy to replace canine teeth of maintenance.
Clamp force 1120kN
Maximum shackle torque 58900N·m
Rear vice rotation Angle 25°
Vice sliding distance 200mm
8. The slurry pump system
For construction of Hengyang slurry pump equipped with mud and slurry, which guarantee the construction smoothly. There are four adjustable gear speed which can also be adjusted the flow of the slurry pump and provide better operating experience.
Gear 4 speed
The maximum flow of slurry 600L/min
The maximum pressure of slurry 100bar
9. Cab
Rotating control cab, adjustable seats, equipped with air conditioning, greatly improved the operation comfort level of drilling rig, interior lights, windshield wipers, the front glass can be doubled.
Width of the cabin 1000mm
Length of the cabin 1800mm
The rotation angle 45°
10. Lorry crane
Random configuration 2T XCMG lorry crane and manual operation stable.
Model GSQ2SK1Q
Max lifting weight 2T
The farthest distance operation 5.67m
Max. Lifting Moment 4T·m
Two.The main technical parameters
| Item | Technical parameters | |
| Engine | Producer | Cummins Engien CO.,Ltd |
| Model | 6LTAA8.9-C325 | |
| Rated power | 239 kW / 2200 r/min | |
| Power head push and pull | Type | Pinion and rack drive |
| Rated pulling/feeding force | 725/725 kN | |
| Running speed of power unit | 0～32 m/min | |
| Rotation | Type | Double-motor gear transmission |
| Max.torque of power unit | 28250 N·m | |
| Rotation speed of power unit | 100 r/min | |
| Drill stem | Diameter | φ102 mm |
| Length (single piece) | 6000mm | |
| Adjustment angle | 10～18° | |
| Travel Driving | Type | Self-propelled steel tracks |
| Travel speed | 2.5 km/h | |
| Slurry pump | Type | 600L/min,hydraulic drive |
| Total weight | 21T | |
| Dimensions | 11610×2800×3115mm | |
Three .The main parts subsidiary
1. The core parts subsidiary:
| Name | Manufacturer |
| Engine | Dongfeng Cummins Engine |
| Main pump | SAUER |
| Auxiliary pump | Tianjin |
| Manual reset relay | SAUER/AMCA |
| Hand shank | SAUER |
| Controller | German Rexroth |
| Power head motor | Beijing Huade |
| Power head speed reducer | Bonfiglioli/Brevini |
| Power head bearing | ZWZ |
| Lorry-mounted crane | XCMG GROUP |
| Track | Hubei Xian Group |
| Walking motor, reducer | South Korea Tongmyong Copmay |
2. The options are as follows ( With reference to the contract)
1) Drill stem:
| Name | Type | Specification | Remarks |
| Drill stem | Welded type(S135) | φ102mm×6m | NC38Clasp Type |
2) Back to the expansion device:
| Name | Type | Specification | Remarks | |
| Back to the expansion device | Squeeze expanding type | φ450mm | | |
| φ600mm | ||||
| φ750mm | ||||
| φ900mm | ||||
| φ1050mm | ||||
| φ1200mm | ||||
| Flow port type | φ450mm | |||
| φ600mm | ||||
| φ750mm | ||||
| φ900mm | ||||
| φ1050mm | ||||
| φ1200mm | ||||
| φ1300mm | ||||
3) Accessories:
| Name | Type | Specification | Remarks |
| Accessories | Pilot guide bit | 102 | |
| Guide plate | 102 | ||
| Positive pull head | 102 | ||
| Negative pull head | 102 | ||
| Transfer case | 80T | ||
| Short sub | 102 |
4) Others:
| Name | Specification | Remarks | |
| Slurry System | Slurry mixing system | 5 cubic | |
| Instrument | Exploratory apparatus | F5 | DCI |
| GL600 | Gemdale | ||
| GL700 | |||
| Detecting instrument | 8000 | Reddy | |
4. The whole machine appearance and transportation
Overall dimension 11610×2800×3115mm
Shipping weight (Don’t include drill pipe, drill) 21T
5. The accessory technical documents
The following technical documents are provided for XZ680A horizontal directional drilling rig
Certificate of conformity
XZ680A HDD horizontal directional drilling machine operation instructions
6LTAA8.9-C325 engine operation instructions and warranty card
BW-600 slurry pump operation instructions
Wearing parts and spare parts list, the accessory tools list
Engineering vehicle air conditioning general specification
Note: The products will be improved along with the technical advancement and the difference will be defined during ordering.
