Product

XZ400 XCMG Horizontal Directional Drill

Max Rotation Torque 14000 N.m
Engine Power 179 Kw
Max Push&pull Force 400 kN
Suitable Pipe Size 73/83mm*3m
Quantity:
XZ400 XCMG Horizontal Directional Drill  Technical Specifications Sheet

Product model: XZ400 XCMG Horizontal Directional Drills

XZ400 XCMG  Horizontal Drills  type  horizontal directional drilling machine  has the advantages of compact structure,  beautiful  appearance,  main technical performance parameters  reach the domestic advanced level.  The main components,parts  selection of  well-known brand products,  good performance,  stable quality,  the  good use reliability.

I. Technology Characteristics

High power:   XZ400 XCMG Directional Drills  adopts 179kW diesel engine with the feature to increase turbine torque, ensuring that drilling rig can lay the pipes well in various complicated geological conditions.

Two-speed unit head:     XZ400 XCMG Horizontal Directional Drill  operates at low speed when drilling and back-dragging to ensure that it works smoothly; it can slide more quickly when the rod breaker moves back and forth under unloaded condition to reduce the auxiliary time and improve work efficiency .

Steel crawler: adaptable to various muddy roads.

Floating-type vise:     XZ400 XCMG Horizontal Directional Drills  applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.

Rotatable control desk:     XZ400 XCMG Directional Horizontal Drills  widens the visual field and reduces the fatigue of the operator to make the drilling rig operation more simple and comfortable.

Easy operation: the operation can be available by rotating and pushing and pulling the power head respectively, and it is easy for operator to operate the whole drilling rig after a short-term training.

Convenient maintenance: The engine cover design is reasonable,  the replacement of the filter element  of engine  and  hydraulic systemmaintenance,  simple and convenient.

II. Major technical parameters

Item Unit Qty
Engine Producer
Dongfeng Cummins Engine Co., Ltd
Model
6CTA8.3-C240
Rated power kW/ rpm 179/2200

Pusher and puller
Type

Max.pulling/feeding force kN 400/400
Running speed of power unit m/min 0~22
Rotation Type

Max. torque of power unit N.m 14000
Rotation speed of power unit r/min 0~100
Drill stem Diameter mm φ83
Length (single piece) m 3

Drill stand
Drill stand
Sliding box-type drill stand, with walk platform
Adjusting angle ° 10~22

Travel drive
Type
Self-propelled steel crawler
Travel speed km/h 1.4

Slurry pump
Type
 Hydraulic drive
Flow rate L/min 450
Overall dimension mm 7000x2250x2450
Weight t 11.5

III.  The main component configuration

Engine Dongfeng Cummins Engine Co. Ltd.
Master pump USA SAUER
Rotary motor Beijing Huade
Electromagnetic valve Yuci
Track Hubei Xianning
Travel speed reducer South Korea Dongming
Mortar pump Hengyang prospecting or Rick


IV.  the main  structure and  function

XZ400 XCMG H orizontal Directional Drill  is self  directional drilling  device into a whole.  The  main  chassis,  power head,  drill frame,  anchor device,  engine system,  vice,hydraulic system,  electrical system,  mud  system components.

1, C hassis

The chassis  includes the frame  and the left,  right walking  device.  Left,  right walking  device and the  frame with high  strength bolt  are connected into a whole,  the rear end is  provided with  a hydraulic supporting leg.Walking speed reducer  adopts built-in  planetary reducer(including  motor),  low running noise,  large output torque,  compact structure.  The  machine running  therubber track block,  can guarantee the  influence on pavement,  lawn,  scenic spots of the  minimum.

2, E ngine System

6CTA8.3-C240 179kW/2200rpm,
Selection of  Dongfeng Cummins  engine  6CTA8.3-C240 turbocharged engine.  Rated power 179kW/2200rpm,with  blowing type  oil radiator.

3, P ower Head

The power head  is the main  driver  of drilling rig,hydraulic motor  driven  by double  parallel  input gearrack  type,  slowed by  dynamic head  gear,  the power output  to  drill.

4,  the drilling frame

The  XZ400 XCMG H orizontal Directional Drill  frame  made of high strength  steel  welded together,  the  angle is regulated by a  rear cylinder,power head  push and pull device  is  arranged on thehydraulic motor power  head  driven  gear rackimplementation.

5, S imple Anchorage

Anchoring  a  small volume,  simple and convenient operation.

6,  Vice

Our company  vise  application  specific  patent  floatingvice  technology,  can effectively reduce the  wear  of drill pipe threads,  prolong the service life of drill pipe.

7,  Electrical System

The main  control functions:  engine  and its monitoring and control,  mud pump,  vice,  power head  rotational acceleration,  power head  sliding  acceleration  control.From left to  right  console,  console,  auxiliary console,relay box,  each  sensor connector,  diode  stack,  variousdisplay instrument,  wiring harness.

8,  Hydraulic System

Hydraulic  pump gear pump  and gear  pump is installed on the  PTO  power  outlet.  The power head  rotation andpower head  push and pull  the  oil pump drive,  avoidpipe laying  operations,  all actions  affect each other,  the key  hydraulic  components are used  domestic famousbig company  products,  improve product  reliability.

9,  Mud System

Mud pump  random  belt  driven by hydraulic motor,  can be used according to the  manual  transformation to  pump out water,  meet the need of construction.

V.  User selected parts

1.  Drill pipe , drill

Hebei  Xuanhua,  Wuxi  can  drill  selection of  prospecting and othermanufacturers.  The first to expand  optional  cutting  expansion type,expanding  type,  diameter  from 200 mm to  800 mm.

2.  Guidance system

The wireless  control  to the system,  the optional DCI  companies such as the  guidance system.

3.Slurry mixing system

Slurry mixing  system  includes the engine,  sewage pumps,  slurry  tank,bentonite  mixing  device,  the mud tank  capacity to choose  3m3  or 5M3,the user can according to the actual  need to  select.

VI  . Files

XZ400 horizontal directional drills with the following technical documents:

Packing list
Product certification
An instruction manual
Engine user manual
Mortar pump

Note: the product with technical progress will continue to improve, the difference will be in when ordering.

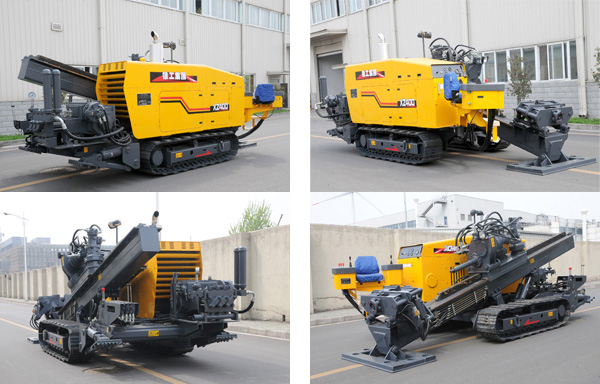

VII. PHOTO

XCMG horizontal directional drill 1
