XZ320D XCMG Horizontal Directional Drilling Equipment

Max Rotation Torque 12000 N.m
Engine Power 153 Kw
Max Push&pull Force 320 kN
Suitable Pipe Size 73mm*3m
Availability:
Quantity:
Model: XZ320D XCMG Horizontal Directional Drilling Equipment

Manufacturer: XCMG

XZ320D XCMG horizontal directional driller  equipment  possess  compact, high performance, full-featured features. It takes the gear rack push ing& pull ing . Its main performance parameters and control technology has reached the international advanced level. Its hydraulic system, power system, walking system and other major components are selected international first-class brand s , with good performance, good reliability advantages.


ONE.  Highlights Introduction

1.XZ320D XCMG horizontal directional drilling equipment has strong power . It uses 153kW high-power EURO III emission standard engine. This engine power strong enough to ensure that rigs in a variety of complex geological conditions to complete the pipe laying operations;

2.XZ320D XCMG horizontal directional driller equipment  using the rack and pinion push-pull approach. This design  to ensure the stability of the power head and drive the reliability of the transmission;

3.XZ320D XCMG horizontal directional drilling equipment  power head and vice being double floating patented technology can greatly protect the drill pipe thread, improve the service life of drill pipe;

4, hydraulic system optimization design to achieve the power head rotation, push-pull two-speed control, and increase the adaptability of drilling conditions to enhance the efficiency of drilling rig;

5, S upport customer demand ing  diversification, the machine can be equipped with automatic (semi-automatic) drill pipe loading system , automatic anchoring device, cab in , air conditioning, cold start, mud antifreeze, mud cleaning ,mud saving ects


TWO.  technical introduction

1. Engine System

     XZ320D XCMG horizontal directional driller  equipment  adopts Cummins engineering machinery dedicated turbocharged engine. It is powerful, energy-saving and efficient, can  meet the national phase II emission standards;

       Engine model                             Cummins 6BTAA5.9-C205
       Rated power                               153kW
       Engine maximum torque           870 N.m / (1400r / min)
       Rated speed                                2000 r / min
       Meet the Emission                     National Standard II
       Fuel tank effective volume        260L

2. Power Head, Vise

The XCMG  horizontal directional drilling equipment achieve pushing&pulling by rack and pinion.  XCMG 's patented power head and vise double floating technology, greatly reducing the operator's operation difficulty. And the effective protection of the drill pipe thread, make drill pipe life increased by 30%; four motor drive to achieve a large torque rotation and large cylinder fastening and rotation to ensure that the drill shackle flexible and convenient.

3. Hydraulic System

The main hydraulic components (pumps, valves, motors, cylinders) are used international  first-class brand s with  good performance  and high reliability;The hydraulic system adopts the multi-pump coordination to complete the whole machine action, and reasonably matches the engine power; the power head rotation and the push-pull two-speed control can improve the construction efficiency. Push-pull two-speed control can improve construction efficiency.
Hydraulic oil tank volume is 230L.

4. Chassis

XZ320D XCMG horizontal directional drilling equipment adopts high-quality steel track (with rubber plate), can adapt to different venues, with  high reliability; frog-leg structure and large fuel tank support  are with good stability characteristics; large torque walking reducer  with superior performance  makes  walking speed reach 2.8km / h.

Track outer distance                  2150 mm
Track width                               400mm
Tread                                         2140 mm
The number of rollers                2 × 6
Gradeability                               30%
Walking speed                           2.8km / h
Average ground pressure          63.6kPa

5. Mud Pump System

XZ320D XCMG horizontal directional drilling  equipment equipped with Hengyang or Leike  320L / min large flow mud pump, to provide a strong and powerful mud flow. Hengyang or L ei ke 320L / min high-flow mud pump ensure s  smooth and safe operating . Mud pump system equipped with manual pressure relief device can effectively avoid the shackle during the phenomenon of mud jet; also available in winter with the construction of mud antifreeze device, mud cleaning devices and slurry valve to improve the construction of the host convenience.

Maximum slurry flow 320L / min
Maximum pressure of mud 80bar

6. Console, Cabin (optional), Drill Pipe Handling Equipment (optional), Anchoring device (optional)

The operator's comfort and the rational layout of the instrument are fully considered during the construction process. The cab and the air-conditioner can reduce the labor intensity and improve the work efficiency. Semi-automatic auxiliary drill pipe handling equipment or automatic drill pipe handling equipment selection can improve work efficiency and reduce labor intensity. Fully automatic drill rod handling device can be equipped with 27 ¢ 73 monolithic drill pipe. Automatic anchoring device matching, improve the degree of automation, reduce labor intensity.

Cab size 1350 × 850 × 1550mm

7. Drilling pipe,drilling accessories(option) specification

Name Type style Size Remark
Drilling pipe Intergral

73mm×3m 73
Welding type
Drilling accessories Back reamer BARREL ¢300mm XCMG
¢400mm
¢500mm
¢600mm
¢700mm
¢800mm
¢900mm
Name Type Style Size remark
Drill accessories Back reamer FLUTED ¢300mm XCMG
¢400mm
¢500mm
¢600mm
¢700mm
¢800mm
¢900mm
Accessories PILOT DRILLING 73
start rod 73
PILOT BOARD 73
torque sleeve 73
left-hand nut 73
male pull head 73
Female pull head 73
swivel 32T
PUP JOINTS 73
Slurry system slurry mixing system 2M3 Shanghai
3M3
Device Guidance F1 Falcon DCI
Falcon
F5

Jindi
Jindi 350
Jindi 600
Detector 8000 UK Radio


THREE. Main parameter

Item Spe
Engine Manufacturer Cummins
Model 6BTAA5.9-C205
Rated power 153 kW / 2000 r/min
Power head push and pull Type Rack&Pinion
Maximum drag force / feed force 320/320 kN
power head rotation Type Four-motor drive
Power head max torque 12000 N·m
Power head rotation 0~125r/min
Drilling pipe Diameter φ73 mm
Length(single unit) 3m
Adjustment angle 1020°
Walking drive Type Self walking steel track
walking speed 2.8km/h
Mud pump type hydraulic drive 320L/min


FOUR. Main Parts Supplier

Name Manufacturer
Engine Cummins
Main pump Tianjin PERMCO
Auxiliary pump Tianjin PERMCO
Rotation,Push&pull motor EATON
Push&pull reducer XCMG
Track Quanzhou Juli
Walking reducer Eaton/Dagang INI



Five.Transportation

XCMG horizontal directional drilling equipmentXZ320D horizontal directional drilling equipment size


Overall size                       6500×2250×2450 mm
Operating weight                           10.5T

If cabin,self anchoring,self pipe loading system chosen

Overall size                      6800×2280×2450 mm
Operating weight                           11.5T


Six.Documents with machine

XZ320D XCMG horizontal directional drilling equipment packing documents

Product certification
Instruction Manual
Product spare parts Atlas
ENGINE INSTRUCTION MANUAL
Engine warranty card
Mud pump instruction manual
Packing list (including wearing parts and spare parts list, vehicle tools list, transport parts list)


Seven.XZ320D XCMG Horizontal directional drilling equipment main machine equipping explanation

   Name. Optional function XZ320D standard Option
Engine 6BTAA5.9-C205 YES
Cold start YES
Anchoring system Simple anchoring YES
Single self anchoring NO YES
Double self anchoring NO YES
Mud pump system Mud anti frozen NO YES
Mud cleaning NO YES
Pipe loading system Half auto pipe loading system NO YES
Full auto pipe loading system NO YES
Cabin Simple canopy NO YES
Cabin(coll&warm) NO YES



Eight. Photos

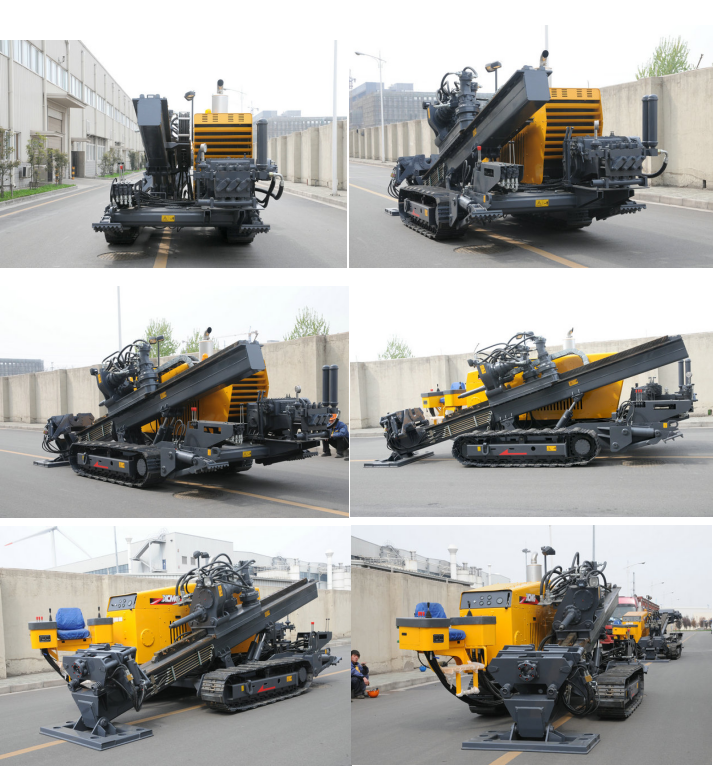

xcmg horizontal directional driller equipment (2)

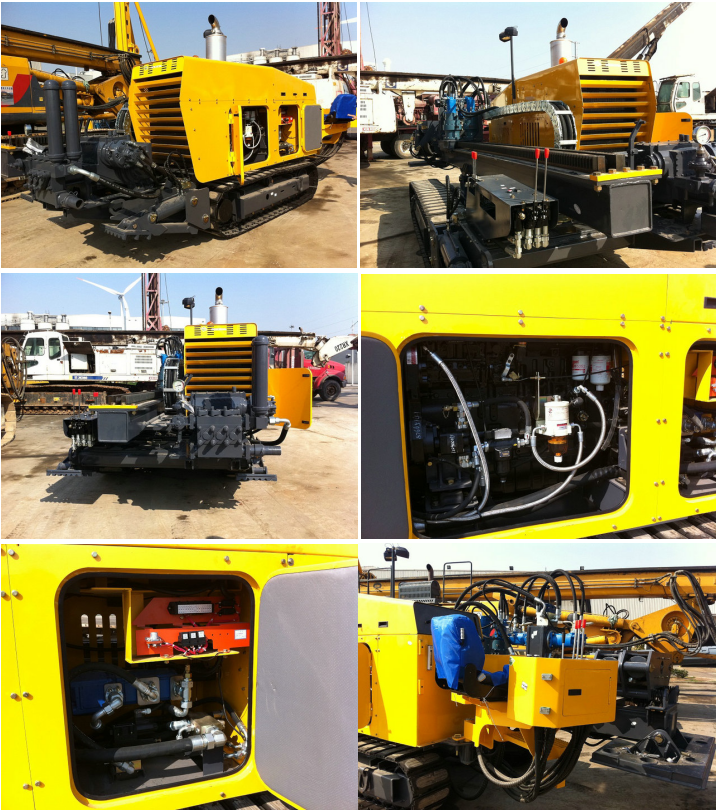

XZ320D horizontal directional drilling equipment (1)
