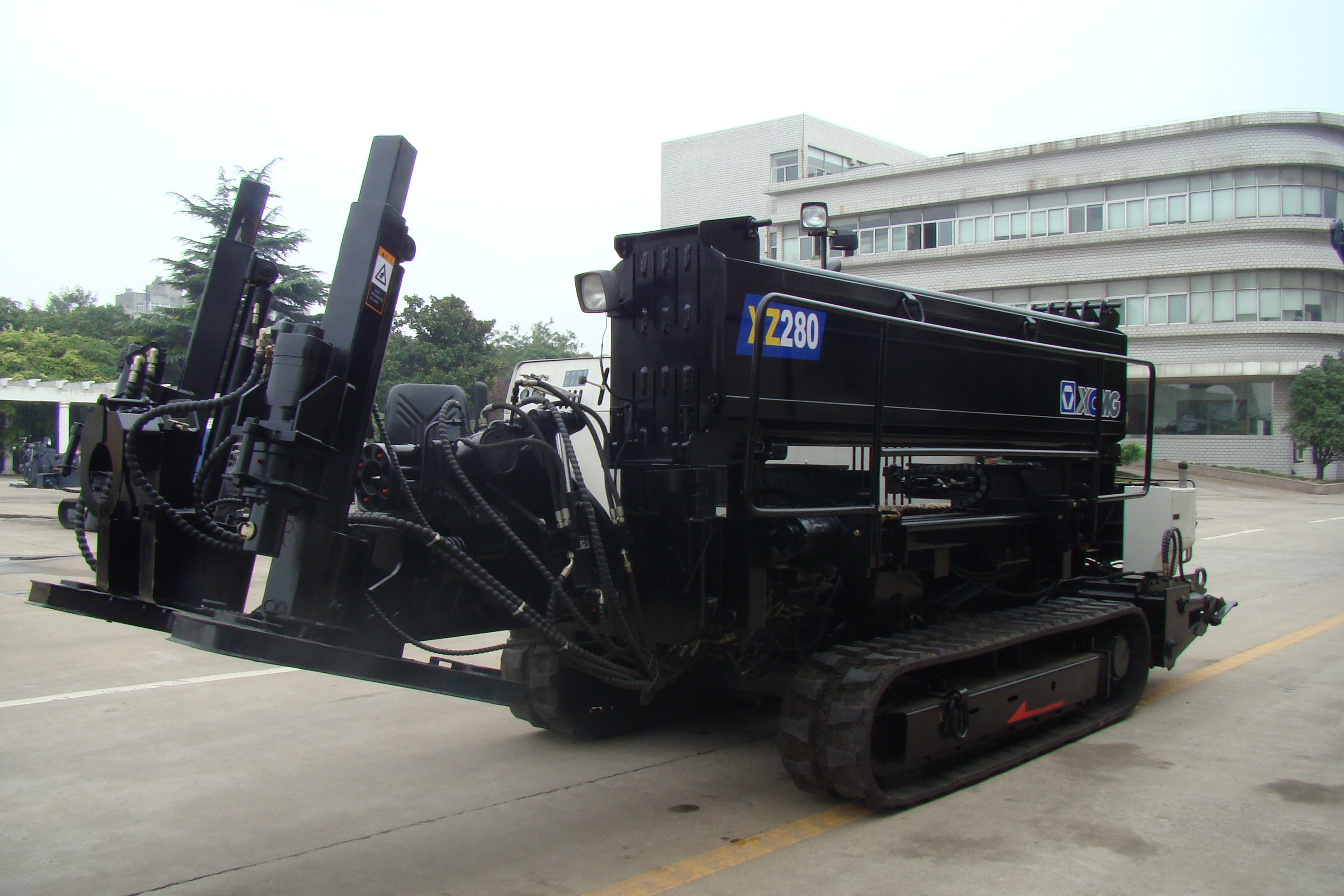

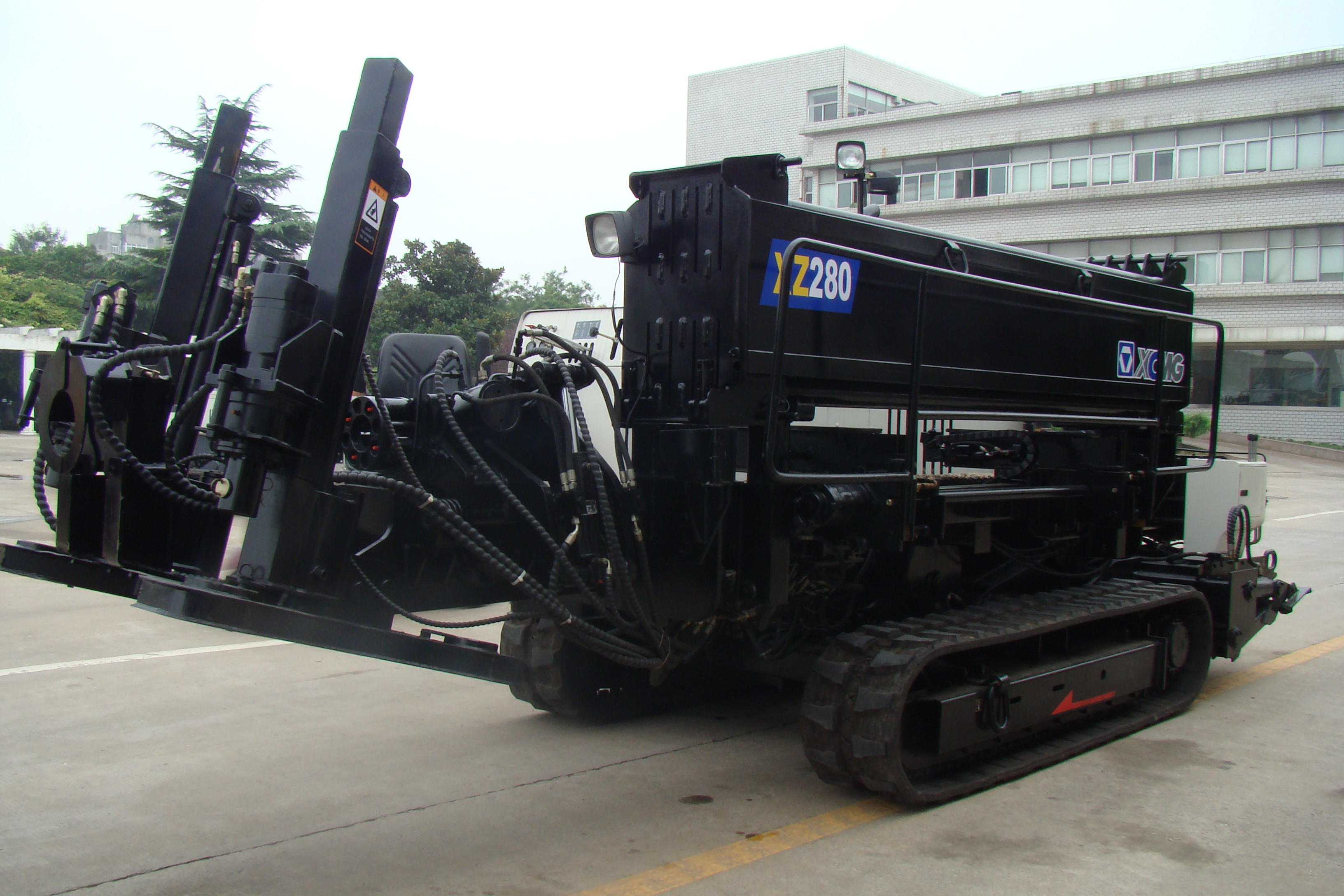

XZ280 HDD drill rig

XZ Series hdd drill rig are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Series Horizontal Directional Drills have the advancetages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quanlity. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.

Model	XZ280
Engine	Shangchai D6114ZG
Rated power	140kw/2300rpm
Max.pullback/thrusting	280/280KN
Spindle torque (max)	10000N.m
Spindle speed	0~120r/min
Bore diameter (max)	400m
Backreaming dismeter	∮750mm
Tubing length (single)	3m
Tubing diameter	∮73mm
Entry angle	10~23'
Mud flow rate (max)	250L/min
Mud pressure (max)	80bar
Overall weight	12500kg
Dimension (L*W*H)	7208*2200*2450mm
