Technical specification
Product model: XZ200 XCMG HDD Horizontal Directional Driller
Manufacturer: XCMG GROUP
XZ200 XCMG HDD Horizontal Directional Driller has the compact structure and excellent performance. The function is all ready. Adopting hydraulic pilot control and gear and rack push-pull. The main performance parameters and control technology reached the international advanced level. Hydraulic system, power system, walking system and other main parts are picked from the first-class brand products at home and abroad with the good performance and reliability.
ONE. Highlights
1. hydraulic pilot control has the comfort and flexible adjustment ability. The first-class brand hydraulic components can guarantee the machine hydraulic system reliable.
2. The gear and rack push and pull, which ensure the stability and the reliability of the transmission of power head operation. XCMG proprietary patented power head floating technology can greatly protect the drill pipe thread and increase 30% of the service life of the drill pipe.
3. High-speed push-pull system, variable motor power head can adjust the high and low speed. The drill increase adaptability and promote the efficiency of drilling rig construction.
4. It has the stable chassis support. Using the classic H beam structure. The high quality rubber tracks and the frog leg structure can provide the strong guarantee for the whole construction stability.
5. Option: the machine can be equipped with automatic loading and unloading drill pipe. Drill pipe box can accommodate 48 drill pipe, which can guarantee the construction of about 150 meters. There is automate and efficient construction. It can effectively reduce the construction cost and labor intensity.
6. Meeting the customer various needs. The machine can do automatic or semi-automatic loading and unloading drill rod device. Automatic anchoring system, cabin, air conditioning, mud antifreeze, mud cleaning and mud throttling device can also be equipped with environmental protection. The high efficiency of Dongfeng cummins meeting the three electronic-controlled engine emissions.
TWO. Technology Introduction
1.Hydraulic System
Adopting hydraulic pilot control. The hydraulic components are chosen from the domestic and international first-class brand. Five pump can complete the whole machine movement and reasonably distribute the engine power.
Pressure | 21Mpa |
The hydraulic oil tank volume | 230L |
2. Engine system
Choosing Dongfeng Cummins turbo engine, which is powerful. Its emissions meet China's second stage standards.
Engine type | 6BTAA5.9-C150 |
Rated power | 112kW |
Max. torque | 670 N•m /(1400r/min) |
Rated speed | 2200 r/min |
Standard | Second stage |
Main engine fuel tank volume | 250L |
Option: High Dongfeng cummins turbocharged engine emissions standards, emissions can meet the three stages in China and EU Stage IIIA.
Engine type | QSB4.5-C160 |
Rated power | 119kW |
Max. torque | 624 N•m /(1400r/min) |
Rated speed | 2200 r/min |
Standard | Third stage, EU Stage IIIA |
3. Chassis
XZ200 XCMG HDD Horizontal Directional Driller takes the classical H beam structure, the high quality rubber tracks and venue with strong adaptability and high reliability. The frog leg structure and oil cylinder support have the great stability. Eaton walking speed reducer has the stable performance and walking speed can be up to 2.2 km/h.
Track outside width | 2090 mm |
Track width | 320 mm |
Wheel base | 1910 mm |
Roller number | 6 units X 2 |
Gradability | 30% |
Walking speed | 2.2 km/h |
Tractive effort | 68000N |
4. Power head
The power head can finish the action of the push and pull through the gear and rack. Power head floating device can effectively protect drill pipe thread. Variable motor achieve the high-speed push and pull. The set of drill pipe is φ60 x 3000.
Max. push and pull speed | 0~26m/min |
Max. rotating torque | 6350N.m |
Power head distance | 4000mm |
5. The slurry pump system
Host is equipped with 250 l/min flow slurry pump, which provide strong mud supply for construction, ensuring the security of the construction smoothly. Option: winter construction with mud anti-freezing device, daily maintenance with mud cleaning device, which can improve the convenience of the construction.
Maximum rate of flow | 250L/min |
Maximum pressure | 80bar |
6. Operation desk, cabin(Option)
The host operating system can fully consider the construction process of the operator comfort and the instrument layout rationality combining hydraulic control pilot operation, control system, the operating system for the comfort and convenience, high efficiency and energy saving. Option: cabin, air conditioning. They can ensure that the host can regularly work in winter and summer. They can provide the comfortable and safe operating environment for operators and improve working efficiency.
Cabin dimension | 1200 X 1050 X 1600mm |
7. Drill pipe unloading system (Option)
The host is equipped with the semi-automatic loading and unloading device. Through the ratating mechanism, the auxiliary drill pipe can assist loading and unloading drill rod. It can also be equipped with automatic drill pipe unloading system. Through the mechanical device, it can realize the automatic loading and unloading drill pipe. Drill pipe box can accommodate 48 root φ60 drill pipe. Drill pipe has the high efficiency and good reliability, which can effectively reduce the labor intensity.
8. Anchor device (Option)
Host is equipped with the simple anchor device. Option: single/double anchor device automatically, auxiliary anchor drilling and pressure, high degree of automation and high pressure, which can reduce the labor intensity.
9. Drill pipe(Option)
XZ200 XCMG horizontal directional drilling tools configuration are as follows:
Name | Type | Specification | Remarks | |
Drill pipe | Overall/welding | φ60mm×3m | 60 | |
Drilling tools | Back expansion device | Squeeze expanding | φ200mm | XCMG |
φ300mm | ||||
φ400mm | ||||
φ500mm | ||||
φ600mm | ||||
φ700mm | ||||
Channel impeller | φ200mm | |||
φ300mm | ||||
φ400mm | ||||
φ500mm | ||||
φ600mm | ||||
φ700mm | ||||
Accessories | Pilot guide bit | 60 | ||
Guide plate | 60 | |||
Male pull head | 60 | |||
Female pull head | 60 | |||
Transfer case | 20T | |||
Source nipple | 60 | |||
Slurry system | Slurry mixing system | 2/3 m3 | Shanghai | |
Apparatus | Exploratory apparatus | F2/F5/SE | DCI | |
GL300/GL350/GL600 | Gemdale | |||
Detecting instrument | 8000 | Reddi |
THREE. The main technical parameters
Item | Unit | Quality | |
Engine | Producer | Dongfeng Cummins | |
Type | 6BTAA5.9-C150,QSB4.5-C160 | ||
Rated power | kW/ rpm | 112 / 2200, 119/2200 | |
Push and pull | Type | Gear and rack drive | |
Biggest drag/feed force | kN | 200/200 | |
Power head speed | m/min | 0~26 | |
Rotary | Type | Double motor | |
Power head maximum torque | N.m | 6350 | |
Power head rotation speed | r/min | 0~160 | |
Drill stand | Diameter | mm | φ60mm X 3000 |
Adjustable angle | ° | 10~22 | |
Walking drive | Type | Self-propelled rubber tracks | |
Walking speed | km/h | 2.2 | |
Slurry pump | The rate of flow | L/min | 250 |
Overall weight | kg | Standard:8500 | |
High Configuration:10000 |
FOUR. The main component configuration
Item | Producer |
Engine | Dongfeng cummins |
Main pump | Permco |
Auxiliary pump | Permco |
Rotary motor | Eaton |
Push and pull motor/reducer | Dagang |
Hand shank | Eaton |
Hydraulic tubing | XCMG |
Hydraulic oil cylinder | XCMG |
Walking reducer | Eaton/Dagang |
FIVE. The machine appearance and transportation
Standard dismension:
Item | Code | Parameters |
Total length | L | 5900 mm |
Total width | W | 2210 mm |
Total height | H | 2400 mm |
Weight | 8500kg |
Equipped with cabin, drill pipe handling equipment, automatic anchorage, dimension size as shown in the figure below:
Item | Code | Parameters |
Total length | L | 6200 mm |
Total width | W | 2270 mm |
Total height | H | 2400 mm |
Weight | 10000kg |
SIX. Documents
XZ200 XCMG HDD horizontal directional driller technical documents as the following:
Product certificate
Product specification
Product parts atlas
The engine maintenance manual
Mud pump maintenance manual (Option)
Packing list (Including wearing parts and spare parts list, the accessory tools list)
SEVEN. The host configuration instructions
Item | Optional function | XZ200 Standard | Option |
Engine | China’s 2 stage 6BTAA5.9-C150 (112kW) | √ | |
China’s 3 stage、EU Stage IIIA emission QSB4.5-C160 (119kW) | / | □ | |
Engine | Cold start | √ | |
Anchor device | Simple anchor device | √ | |
Single automatic anchor device | / | □ | |
Double automatic anchor device | / | □ | |
Slurry | Slurry cleaning device | / | □ |
Slurry | Slurry anti-freezing device | / | □ |
Drill pipe handling equipment | Semi-automatic pipe handling device | / | □ |
Automatic drill pipe handling device | / | □ | |
Cabin | Canopy | √ | |
Operating room(cold and warm wind) | / | □ |
√-Standard □-Option

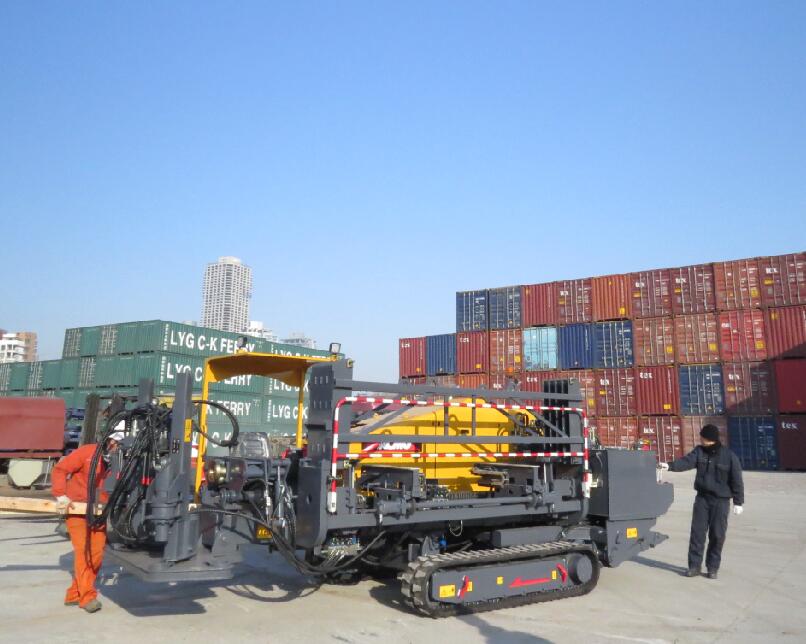

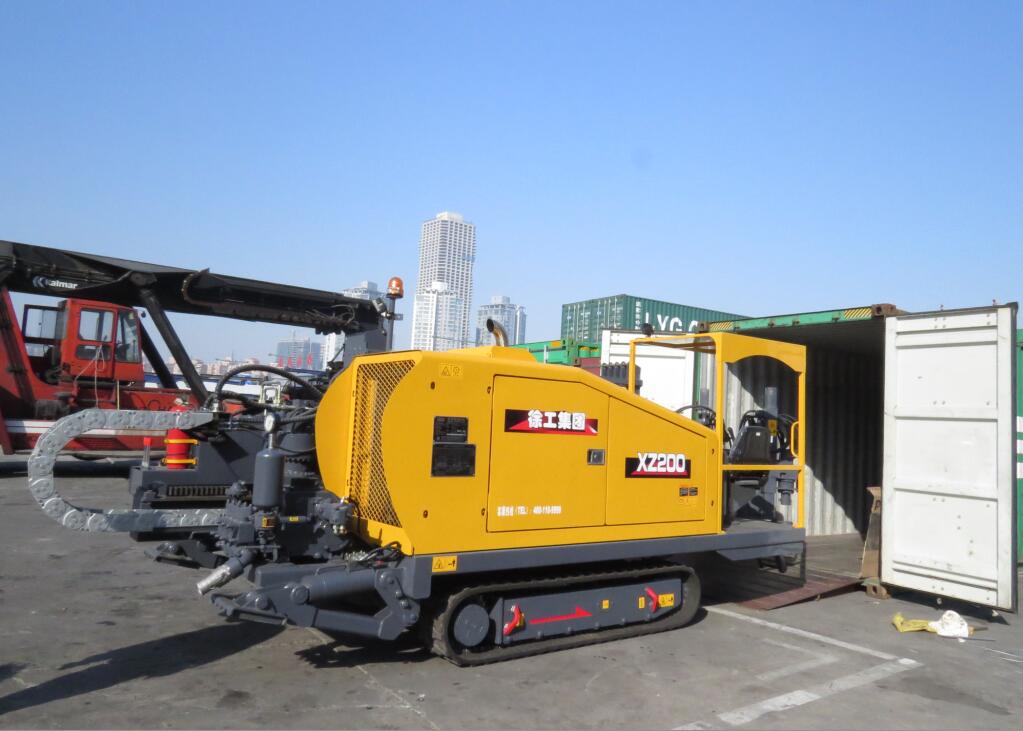

EIGHT PHOTO

Technical specification
Product model: XZ200 XCMG HDD Horizontal Directional Driller
Manufacturer: XCMG GROUP
XZ200 XCMG HDD Horizontal Directional Driller has the compact structure and excellent performance. The function is all ready. Adopting hydraulic pilot control and gear and rack push-pull. The main performance parameters and control technology reached the international advanced level. Hydraulic system, power system, walking system and other main parts are picked from the first-class brand products at home and abroad with the good performance and reliability.
ONE. Highlights
1. hydraulic pilot control has the comfort and flexible adjustment ability. The first-class brand hydraulic components can guarantee the machine hydraulic system reliable.
2. The gear and rack push and pull, which ensure the stability and the reliability of the transmission of power head operation. XCMG proprietary patented power head floating technology can greatly protect the drill pipe thread and increase 30% of the service life of the drill pipe.
3. High-speed push-pull system, variable motor power head can adjust the high and low speed. The drill increase adaptability and promote the efficiency of drilling rig construction.
4. It has the stable chassis support. Using the classic H beam structure. The high quality rubber tracks and the frog leg structure can provide the strong guarantee for the whole construction stability.
5. Option: the machine can be equipped with automatic loading and unloading drill pipe. Drill pipe box can accommodate 48 drill pipe, which can guarantee the construction of about 150 meters. There is automate and efficient construction. It can effectively reduce the construction cost and labor intensity.
6. Meeting the customer various needs. The machine can do automatic or semi-automatic loading and unloading drill rod device. Automatic anchoring system, cabin, air conditioning, mud antifreeze, mud cleaning and mud throttling device can also be equipped with environmental protection. The high efficiency of Dongfeng cummins meeting the three electronic-controlled engine emissions.
TWO. Technology Introduction
1.Hydraulic System
Adopting hydraulic pilot control. The hydraulic components are chosen from the domestic and international first-class brand. Five pump can complete the whole machine movement and reasonably distribute the engine power.
Pressure | 21Mpa |
The hydraulic oil tank volume | 230L |
2. Engine system
Choosing Dongfeng Cummins turbo engine, which is powerful. Its emissions meet China's second stage standards.
Engine type | 6BTAA5.9-C150 |
Rated power | 112kW |
Max. torque | 670 N•m /(1400r/min) |
Rated speed | 2200 r/min |
Standard | Second stage |
Main engine fuel tank volume | 250L |
Option: High Dongfeng cummins turbocharged engine emissions standards, emissions can meet the three stages in China and EU Stage IIIA.
Engine type | QSB4.5-C160 |
Rated power | 119kW |
Max. torque | 624 N•m /(1400r/min) |
Rated speed | 2200 r/min |
Standard | Third stage, EU Stage IIIA |
3. Chassis
XZ200 XCMG HDD Horizontal Directional Driller takes the classical H beam structure, the high quality rubber tracks and venue with strong adaptability and high reliability. The frog leg structure and oil cylinder support have the great stability. Eaton walking speed reducer has the stable performance and walking speed can be up to 2.2 km/h.
Track outside width | 2090 mm |
Track width | 320 mm |
Wheel base | 1910 mm |
Roller number | 6 units X 2 |
Gradability | 30% |
Walking speed | 2.2 km/h |
Tractive effort | 68000N |
4. Power head
The power head can finish the action of the push and pull through the gear and rack. Power head floating device can effectively protect drill pipe thread. Variable motor achieve the high-speed push and pull. The set of drill pipe is φ60 x 3000.
Max. push and pull speed | 0~26m/min |
Max. rotating torque | 6350N.m |
Power head distance | 4000mm |
5. The slurry pump system
Host is equipped with 250 l/min flow slurry pump, which provide strong mud supply for construction, ensuring the security of the construction smoothly. Option: winter construction with mud anti-freezing device, daily maintenance with mud cleaning device, which can improve the convenience of the construction.
Maximum rate of flow | 250L/min |
Maximum pressure | 80bar |
6. Operation desk, cabin(Option)
The host operating system can fully consider the construction process of the operator comfort and the instrument layout rationality combining hydraulic control pilot operation, control system, the operating system for the comfort and convenience, high efficiency and energy saving. Option: cabin, air conditioning. They can ensure that the host can regularly work in winter and summer. They can provide the comfortable and safe operating environment for operators and improve working efficiency.
Cabin dimension | 1200 X 1050 X 1600mm |
7. Drill pipe unloading system (Option)
The host is equipped with the semi-automatic loading and unloading device. Through the ratating mechanism, the auxiliary drill pipe can assist loading and unloading drill rod. It can also be equipped with automatic drill pipe unloading system. Through the mechanical device, it can realize the automatic loading and unloading drill pipe. Drill pipe box can accommodate 48 root φ60 drill pipe. Drill pipe has the high efficiency and good reliability, which can effectively reduce the labor intensity.
8. Anchor device (Option)
Host is equipped with the simple anchor device. Option: single/double anchor device automatically, auxiliary anchor drilling and pressure, high degree of automation and high pressure, which can reduce the labor intensity.
9. Drill pipe(Option)
XZ200 XCMG horizontal directional drilling tools configuration are as follows:
Name | Type | Specification | Remarks | |
Drill pipe | Overall/welding | φ60mm×3m | 60 | |
Drilling tools | Back expansion device | Squeeze expanding | φ200mm | XCMG |
φ300mm | ||||
φ400mm | ||||
φ500mm | ||||
φ600mm | ||||
φ700mm | ||||
Channel impeller | φ200mm | |||
φ300mm | ||||
φ400mm | ||||
φ500mm | ||||
φ600mm | ||||
φ700mm | ||||
Accessories | Pilot guide bit | 60 | ||
Guide plate | 60 | |||
Male pull head | 60 | |||
Female pull head | 60 | |||
Transfer case | 20T | |||
Source nipple | 60 | |||
Slurry system | Slurry mixing system | 2/3 m3 | Shanghai | |
Apparatus | Exploratory apparatus | F2/F5/SE | DCI | |
GL300/GL350/GL600 | Gemdale | |||
Detecting instrument | 8000 | Reddi |
THREE. The main technical parameters
Item | Unit | Quality | |
Engine | Producer | Dongfeng Cummins | |
Type | 6BTAA5.9-C150,QSB4.5-C160 | ||
Rated power | kW/ rpm | 112 / 2200, 119/2200 | |
Push and pull | Type | Gear and rack drive | |
Biggest drag/feed force | kN | 200/200 | |
Power head speed | m/min | 0~26 | |
Rotary | Type | Double motor | |
Power head maximum torque | N.m | 6350 | |
Power head rotation speed | r/min | 0~160 | |
Drill stand | Diameter | mm | φ60mm X 3000 |
Adjustable angle | ° | 10~22 | |
Walking drive | Type | Self-propelled rubber tracks | |
Walking speed | km/h | 2.2 | |
Slurry pump | The rate of flow | L/min | 250 |
Overall weight | kg | Standard:8500 | |
High Configuration:10000 |
FOUR. The main component configuration
Item | Producer |
Engine | Dongfeng cummins |
Main pump | Permco |
Auxiliary pump | Permco |
Rotary motor | Eaton |
Push and pull motor/reducer | Dagang |
Hand shank | Eaton |
Hydraulic tubing | XCMG |
Hydraulic oil cylinder | XCMG |
Walking reducer | Eaton/Dagang |
FIVE. The machine appearance and transportation
Standard dismension:
Item | Code | Parameters |
Total length | L | 5900 mm |
Total width | W | 2210 mm |
Total height | H | 2400 mm |
Weight | 8500kg |
Equipped with cabin, drill pipe handling equipment, automatic anchorage, dimension size as shown in the figure below:
Item | Code | Parameters |
Total length | L | 6200 mm |
Total width | W | 2270 mm |
Total height | H | 2400 mm |
Weight | 10000kg |
SIX. Documents
XZ200 XCMG HDD horizontal directional driller technical documents as the following:
Product certificate
Product specification
Product parts atlas
The engine maintenance manual
Mud pump maintenance manual (Option)
Packing list (Including wearing parts and spare parts list, the accessory tools list)
SEVEN. The host configuration instructions
Item | Optional function | XZ200 Standard | Option |
Engine | China’s 2 stage 6BTAA5.9-C150 (112kW) | √ | |
China’s 3 stage、EU Stage IIIA emission QSB4.5-C160 (119kW) | / | □ | |
Engine | Cold start | √ | |
Anchor device | Simple anchor device | √ | |
Single automatic anchor device | / | □ | |
Double automatic anchor device | / | □ | |
Slurry | Slurry cleaning device | / | □ |
Slurry | Slurry anti-freezing device | / | □ |
Drill pipe handling equipment | Semi-automatic pipe handling device | / | □ |
Automatic drill pipe handling device | / | □ | |
Cabin | Canopy | √ | |
Operating room(cold and warm wind) | / | □ |
√-Standard □-Option
EIGHT PHOTO
Model | XZ200 | |
Engine | Model (Commins) | 6BTAA5.9-C150/QSB6.7-C130 |
Rated Power kW(r/min) | 112/2200/99/2200 | |
Thrust-Pull | Style | Rack and pinion |
Pull/ Thrust force(kN) | 200/200 | |
Pull/ Thrust speed(m/min) | 0-26 | |
Rotation | Torque (N·m) | 6300 |
Spindle speed(r/min) | 0-160 | |
Mud pump | Max flow rate(L/min) | 200/250 |
Max flow rate(MPa) | 8 | |
Pipe | Diameter*Length(mm*m) | Φ60 X 3 |
Entry angle | ° | 10-22 |
Backreamer diameter | mm | Φ600 |
Weight | T | 8.5/10 |
Dimension(L*W*H) | mm | 5900*2020*2400 / 5200*2250*2400 |
Model | XZ200 | |
Engine | Model (Commins) | 6BTAA5.9-C150/QSB6.7-C130 |
Rated Power kW(r/min) | 112/2200/99/2200 | |
Thrust-Pull | Style | Rack and pinion |
Pull/ Thrust force(kN) | 200/200 | |
Pull/ Thrust speed(m/min) | 0-26 | |
Rotation | Torque (N·m) | 6300 |
Spindle speed(r/min) | 0-160 | |
Mud pump | Max flow rate(L/min) | 200/250 |
Max flow rate(MPa) | 8 | |
Pipe | Diameter*Length(mm*m) | Φ60 X 3 |
Entry angle | ° | 10-22 |
Backreamer diameter | mm | Φ600 |
Weight | T | 8.5/10 |
Dimension(L*W*H) | mm | 5900*2020*2400 / 5200*2250*2400 |
