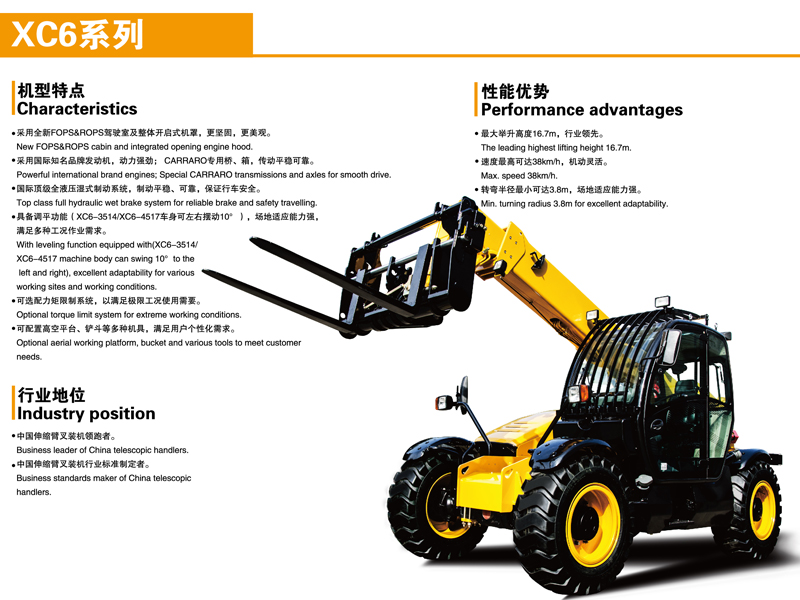

Characteristics
1.New FOPS&ROPS cabin and integrated opening engine hood.
2.Powerful international brand engines; Special CARRARO transmissions and axles for smooth drive.
3.Top class full hydraulic wet brake system for reliable brake and safety traveling.
4.Optional torque limit system for extreme working conditions.
5.Optional aerial working platform, bucket and various tools to meet customer needs.
Industry position
Business leader of China telescopic handlers.
Business standards maker of China telescopic handlers.
Super strong structure and reliability
1.Applied FEM analysis on frames and extension arms to reduce stresses and fit harsh working conditions.
2.Applied full hydraulic wet brake system for stable and reliable brake.
3.Applied water-proof and anti-dust sealing connectors with reliable performance.
Extreme efficient and performance
1.Special CARRARO full electrical-control transmissions with compact structure and high transmission efficiency.
2.Electrohydraulic proportional control working system for accurate operations.
3.Auto flow compensation forks during boom swing process to ensure lifting stability and safety at a high position.
Comfort drive and easy operation
1.Luxury and comfottable cabin with soundproof, thermal insulation, vibration and open visionary.
2.Ergonomic joysticks and dashboard layout, suspension seat for operator’s easy operations.
3.International brand air-conditioner to ensure proper temperature inside the cabin.
4.Equipped with radio, storage grids, cup seats, lighter for human designing.
Safe operation and easy maintenance
1.FOPS&ROPS cabin, extinguisher and rescue hammer are equipped to ensure operator’s safe operation.
2.With leveling function equipped with, excellent adaptability for various working sites and working conditions.
3.Integrated opening engine hood for easier and quick maintenance.
Hydrostatic drive technology, which improves drive efficiency to the utmost extent.

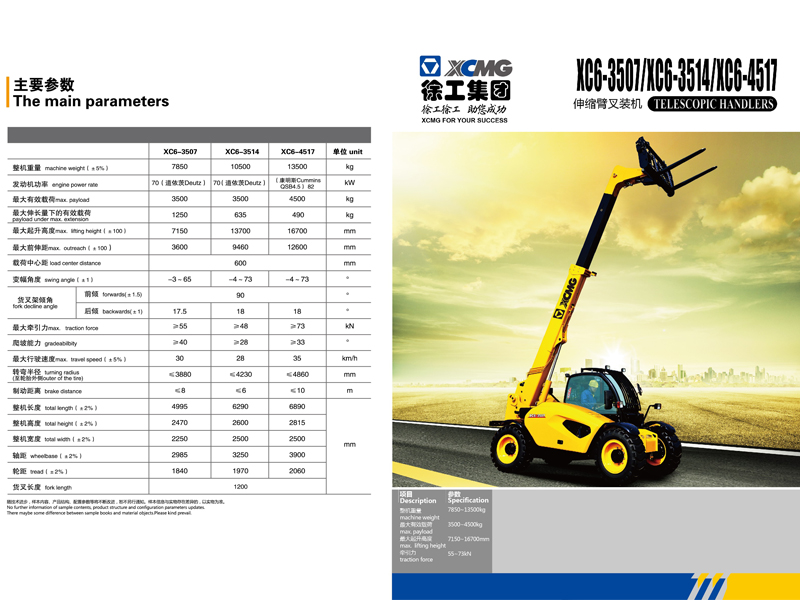

| machine weight(±5%) | 7850kg |
| engine power rate | 70(Deutz)kW |
| max payload | 3500kg |
| payload under max.extension | 1250kg |
| max.lifting height(±100) | 7150mm |
| max.outreach(±100) | 3600mm |
| load center distance | 600mm |
| swing angle(±1) | ˉ3～65° |
| fork decline angle forwards(±1.5) | 90° |
| fork decline angle backwards(±1) | 17.5° |
| max.traction force | ≥55kN |
| gradeability | ≥40° |
| max.travel speed(±5%) | 30km/h |
| turning radius(outer of the tire) | ≤ 3880mm |
| brake distance | ≤ 8m |
| total length(±2%) | 4995mm |
| total height(±2%) | 2470mm |
| total width(±2%) | 2250mm |
| wheelbase(±2%) | 2985mm |
| tread(±2%) | 1840mm |
| fork length | 1200mm |
