Quantity: | |
---|---|
Items | Unit | Parameters |
Rated bucket capacity | m3 | 5 |
Rated load | kg | 9000 |
Operating weight | kg | 29500 |
Max. traction | kN | 245 |
Max. breakout force | kN | 260 |
Boom lifting time | s | 7 |
Total time of 3 devices | s | 12.5 |
Tyre | | 29.5R25 |

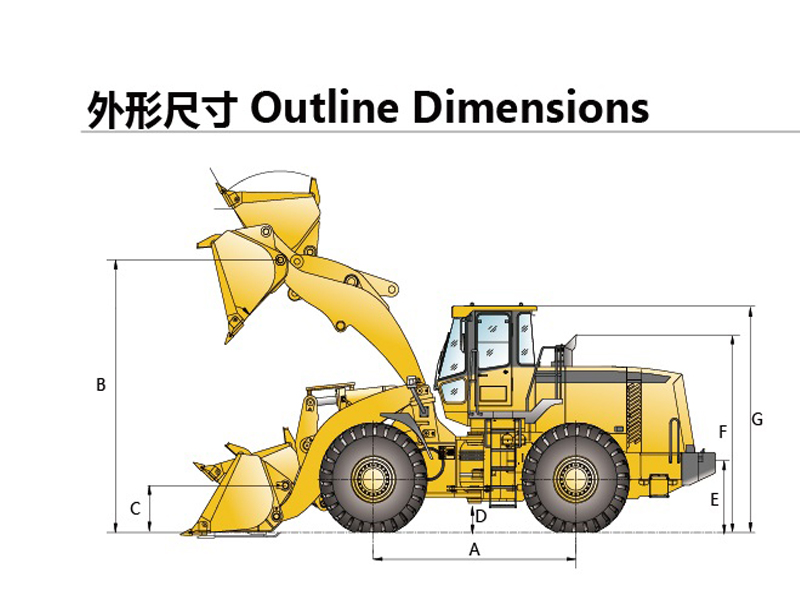

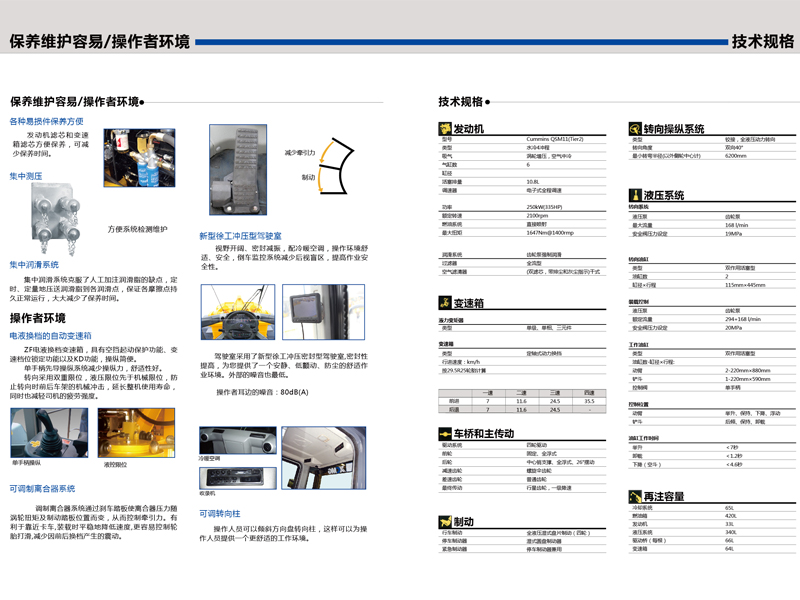

Overall dimension | mm | 9400*3500*3770 |
Engine model | Cummins QSM11-C335 |
Type | Water cooling, 4 stroke |
Suction | Turbo charging, air intercooler |
Cylinder amount | 6 |
Cylinder bore | |
Piston displacement | 10.8L |
Speed controller | Electronic, whole process speed control |
Power | 250kW(335HP) |
Rated revs | 2100rpm |
Fuel system | Direct injection |
Max. torque | 1647nm@1400rmp |
Lubrication system | Gear pump forced lubrication |
Filter | Full flow type |
Air filter | (double element, dust discharge and dust indicator) dry type |
Hydraulic torque converter | |
Type | Single stage, 2 phase, 3 elements |
Transmission | |
Type | Planetary gear |
Travel speed km/h | |
Drive system | 4WD |
Front wheel | Fixed, full floating type |
Rear wheel | Central pin bearing, full floating type, 26' swing |
Reduction gear | Spiral bevel gear |
Differential gear | Common gear |
Final drive | Planetary gear, first stage reduction |
Service brake | Full hydraulic wet type disc brake (4 wheels) |
Parking brake | Wet type disc brake |
Emergency brake | Also used as parking brake |
Type | Articulation, full hydraulic power steering |
Steering angle | bidirectional 40' |
Min. turning radius(by outer wheel center) | 6200mm |
Steering system | |
Hydraulic pump | Gear pump |
Max. flow | 168ltr/min |
Pressure of safety valve | 19MPa |
Steering cylinder | |
Type | Double acting piston type |
Cylinder amount | 2 |
Cylinder bore * stroke | 115mm*445mm |
Loading control | |
Hydraulic pump | Gear pump |
Rated flow | 294+168I/min |
Pressure of safety valve | 20MPa |
Operating cylinder | |
Type | Double acting piston |
Cylinder amt. - cylinder bore * stroke: | |
Boom | 2-180mm*880mm |
Bucket | 1-220mm*590mm |
Control valve | Single handle |
Control device | |
Boom | Lifting, retaining, descending, floating |
Bucket | Back inclination, retaining, dumping |
Cylinder operating time | |
Lifting | 7 s |
Dump | 1.2 s |
Descending (empty bucket) | 4.3 s |
Cooling system | 65L |
Fuel tank | 420L |
Engine | 33L |
Hydraulic system | 340L |
Drive axle (each) | 66L |
Transmission | 64L |
