Sany STC700T humanized operation system
1) New ergonomic design 20 ° reclining control room, with the above operators as the center, design the optimal installation position, choose a new comfortable seat, the front and rear movement distance is 150mm, can recline 140 °, front of the control room
The field of vision is clear, and it is hoisted from a short distance to a long distance.

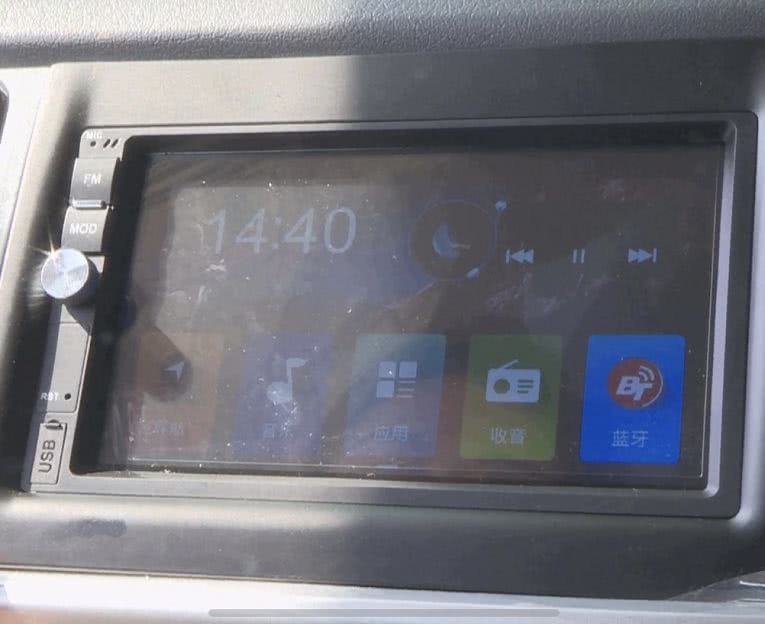

2) The operating room provides a variety of humanized and comfortable facilities: a new three-dimensional 6-channel air-conditioning air supply system, a front air-conditioning button, a new membrane switch button, a mobile phone support, a cup holder, and a rear storage platform.
3) The chassis is equipped with front and rear counterweight supports, and 20 tons of full counterweights can be transferred with the car. Short-distance transportation does not need to be unloaded, saving money and effort.
4) The left and right of the chassis are equipped with new and increased 300mm internal width staircase stairs, double cast aluminum alloy handrails, more comfortable and safe on board.
5) On the left side of the turntable, there is a maintenance staircase, which provides a more convenient and fast winch and boom maintenance channel.
Introduction
The H-shaped outriggers are supported at 4 points, with a vertical and span span of 6.31m × 7.7m, which is easy to operate and strong in stability. It adopts fine-grained high-strength steel plate material and the first and second outriggers are fully hydraulically expanded and contracted laterally. The vertical oil cylinder of the outrigger is protected by a two-way hydraulic lock.
Tire
Tyres / Tyres
12 * 325 / 95R24-20PR
Electrical System
System / Electricalsystem
2 × 12V maintenance-free battery, equipped with a mechanical main power switch, which can manually cut off the power of the vehicle; bus control system, which can realize the exchange of information on and off the car.
