Sany Heavy Industry STC700T hydraulic truck crane production success

Sany Heavy Industry STC700T hydraulic truck crane production success

The cranes on the market have different tones, some are good at lifting high, some are stable and comfortable, and some are comfortable, but few equipments combine these characteristics.

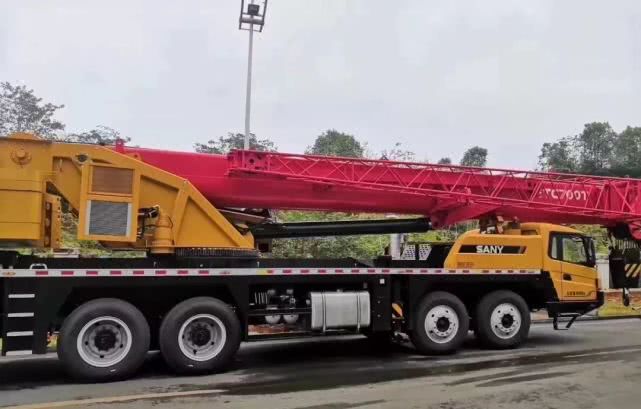

The bright yellow armor makes the STC700T show its mighty masculinity, and the red arm is inserted into the sky and the sense of power bursts into the air. The boom is the most important part of the crane. The fully extended boom of this car is 49.5 meters long and can be lifted to 42 meters away. The 42-meter load capacity is 1.4 tons, which is almost the same as the level of 80-ton equipment. The standard 65-ton quick-release main hook is easy to change ratio, and is equipped with a 20mm diameter high-strength torsion hoisting steel wire rope, 35 * 7 anti-rotation, working comfortably.
STC700T outriggers have a fully extended horizontal span of 7.7 meters and a longitudinal span of 6.31 meters. The use of 960 steel is solid enough. It is worth mentioning that the front leg of this device is low. Some old irons like to hit the auxiliary leg when working. This low leg is very easy to use, and it is also convenient to climb up the car. Coupled with Sany's original classic rectangular cross-section frame, the hanging thing is very stable.
STC700T's hoisting uses imported 11 plunger variable motors, the minimum stable speed can reach 30rpm, the minimum speed of the single winch can reach 1.5m / min, to ensure that each lifting action is accurate, stable and effective.
