HMD32 320HP Bulldozer with Cummins Engine

Engine: CUMMINS NTA855-C360S10, 257/2000 kw/rpm
Blade: Straight tile blade
Track shoe: 560mm
Availability:
Quantity:

HMD32 320HP Bulldozer with Cummins Engine


Features:

The HMD32 crawler bulldozer, carries out standardized mass production of high-power bulldozer. The whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.

•A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.

•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.

•With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.

•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

•The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.

•The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force


Main Parameters

Model

HMD32

Engine

CUMMINS NTA855-C360S10

Displacement

14.01L

Rated power

257/2000 kw/rpm

Max.torque

1400/1440 N.m/rpm

Operating weight

37.2 Ton

Dimension(no ripper)

6880×4130×3688mm

Grounding length

3150mm

Ground pressure

0.105 MPa

Track gauge

2140mm

Dozing capacity

10m³

Blade width

4130mm

Blade height

1590mm

Max drop below ground

560/630mm

Track shoe width

560mm

Pitch

228.6mm

Quantity of track link

41

Quantity of Carrier rollers

4

Quantity of Track rollers

14

Max pressure

14MPa

Discharge

355L/min

Max tractor force

280KN

Forward Speed

F1:0-3.6 Km/h

F2:0-6.6 Km/h

F3:0-11.5 Km/h

Rear Speed

R1:0-4.4 Km/h

R2:0-7.8 Km/h

R3:0-13.5 Km/h


HMD32 dozer more pictures:

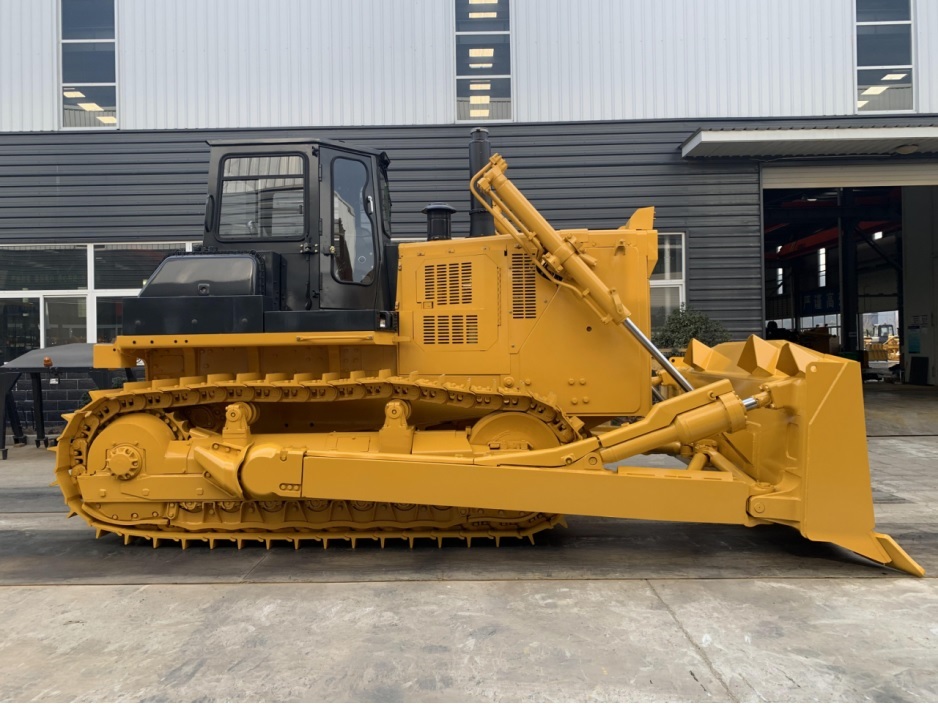

HMD32 dozer (1)

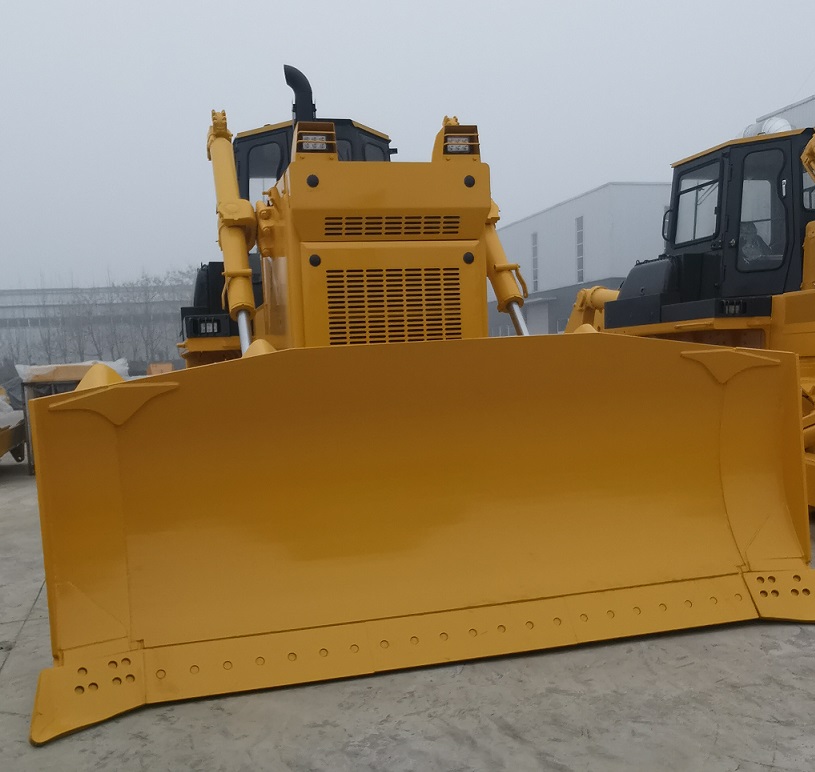

HMD 32 bulldozer (4)
