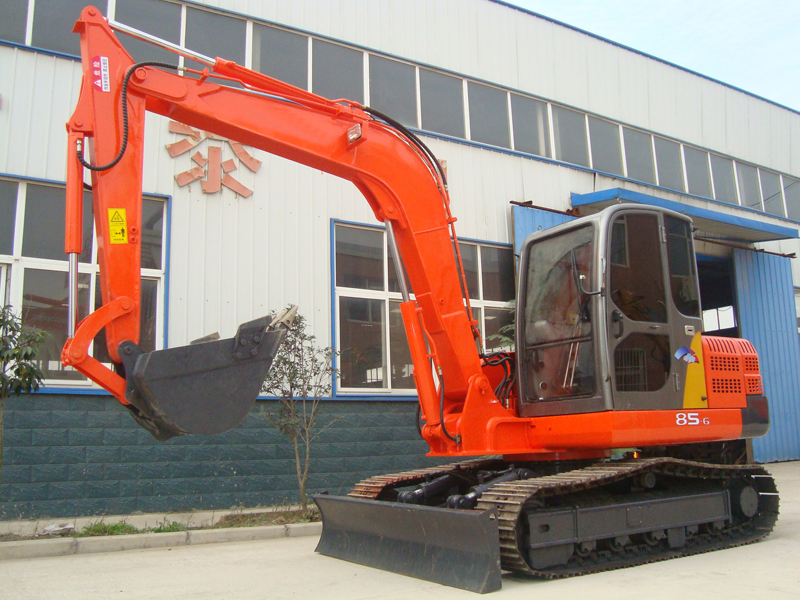

| Description | Unit | FMYG85-6 | |
| Operating weight | kg | 8100 | |
| Bucket capacity | M3 | 0.45 | |
| Length×Width×Height | mm | 6700*2300*2700 | |
| Engine | Model | Yuchai | 4B80-T20 |
| Rated power/speed | kw/r/min | 58/2400(78hp) | |
| Fuel consumption | g/kw.h | ≦218 | |
| Fuel tank capacity | L | 110 | |
| Hydraulic system | Main pump | Japan | Toshiba |
| Rated flow | L/min | 176 | |
| Implementation circuit | MPa | 27 | |
| Hydraulic oil tank capacity | L | 120 | |
| The main relief valve | Japan | Toshiba | |
| Hydraulic motor | Travel motor | Korea | Doosan |
| Swing motor | Korea | Advanced | |
| Specification | Swing motor | r/min | 11 |
| Traveling speed | km/h | 0—30 | |
| Grade ability | ° | 30 | |
| Main dimensions (mm) | FMYG85--6 |
| Upper full width (including car pedal) | 2170 |
| The cab full width | 1000 |
| Bridge all high | 1620 |
| Radius of gyration platform | 2200 |
| Level of balancing | 800 |
| The minimum clearance from the ground | 390 |
| Guide wheel and driving wheel center distance | 2300 |
| Track length | 2850 |
| Track width | 450 |
| Equipped with 600 mm segments of caterpillar full width | 2300 |
| The scope of work (mm) | FMYG85--6 |
| Radius of the ground level mining | 6400 |
| Surface biggest mining area | 6550 |
| MAX digging dept | 3900 |
| MAX digging height | 6170 |
| MAX dumping height | 4770 |
