| Quantity: | |
|---|---|

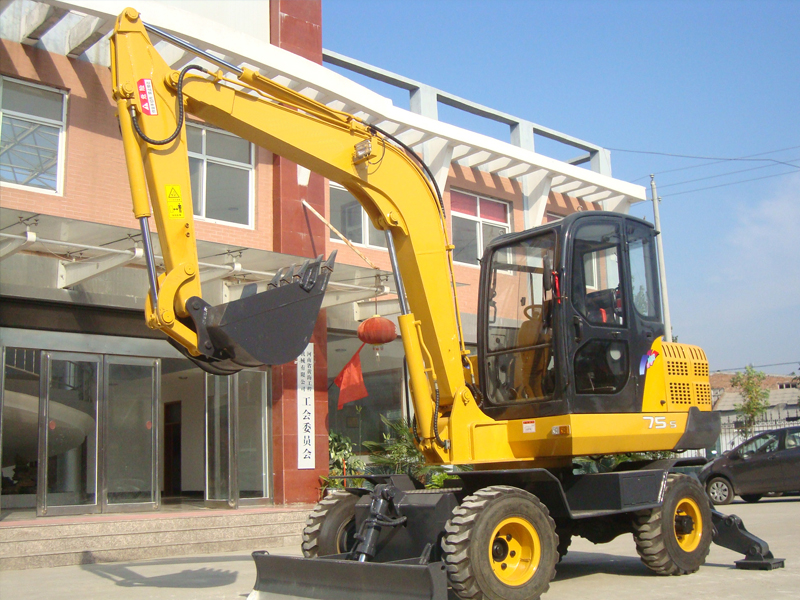

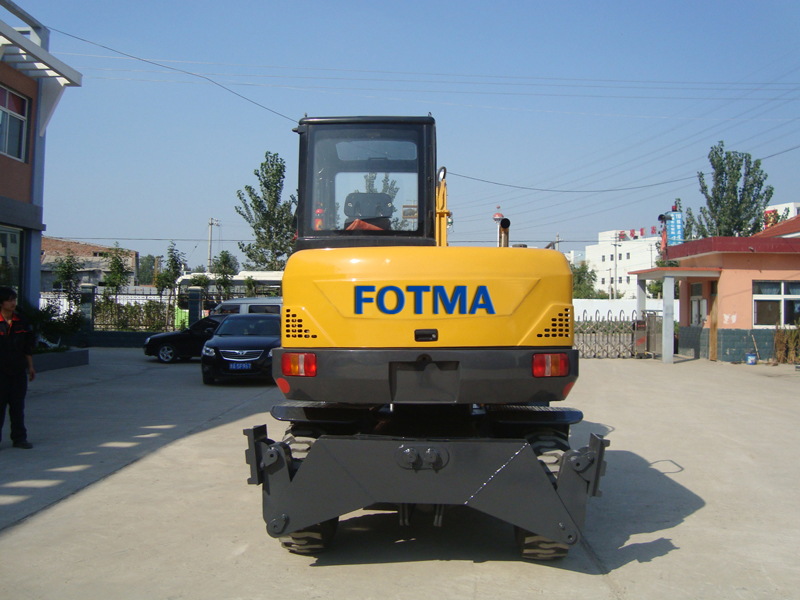

| Description | Unit | FMYG75-5 | |
| Work weight | kg | 7100 | |
| Bucket capacity | M3 | 0.3-0.4 | |
| length * width * height | mm | 6300x2100x3000 | |
| Engine | Model | Weichai | 4102 |
| Rated power/speed | Kw/rpm | 47/2400 | |
| Maximum torque | n.m | 209 | |
| Specific fuel consumption | g/kw.h | ≤251 | |
| Fuel tank capacity | L | 140 | |
| The hydraulic system | Main pump | DOOSAN | T5VP2D28 |
| The rated pressure | Mpa | 22 | |
| Rated flow | L/min | 2x60+39+10 | |
| The main valve | SUNJIN | BCV65/12 | |
| Hydraulic oil tank capacity | L | 150 | |
| Hydraulic motor | Rotary motor | SUNJIN | K60 |
| Walking motor | | Shanghai Qidong A2F63 | |
| Specification | Swing motor | rpm | 0-11 |
| Traveling speed | Km/h | 0-20 | |
| Maximum traction | kn | 60 | |
| Grade ability | ° | 30 | |

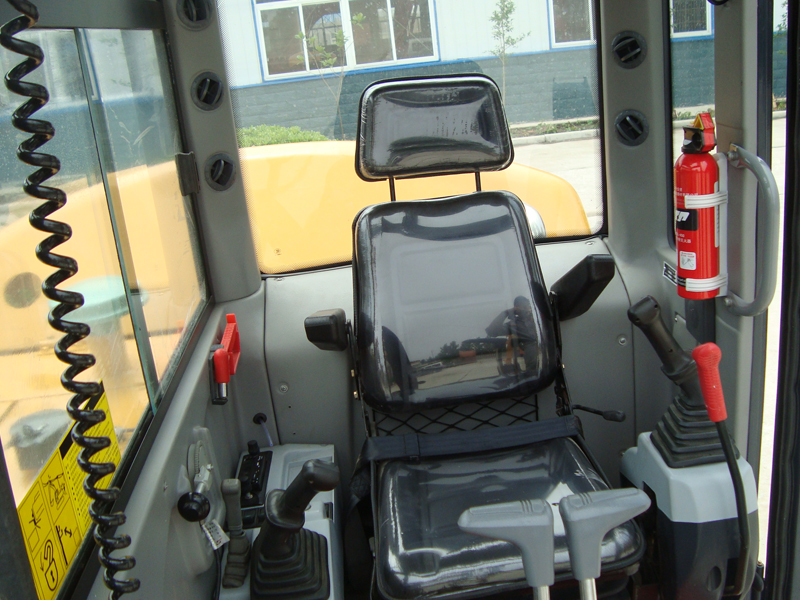

| The cab | 1180x960x1620 | ||
| Rotary support | QND730 | ||
| tire | 825-16 | ||
| transmission | 10T transmission | ||
| Drive axle | 1061 | ||
| Main dimensions | Unit | FMYG75-5 |
| On the platform overall width | mm | 1785 |
| Radius of gyration platform | mm | 2000 |
| Satisfying the height from the ground | mm | 1000 |
| The minimum clearance from the ground | mm | 240 |
| Wheel base | mm | 1490 |
| The wheelbase | mm | 2050 |
| Movable arm length | mm | 3100 |
| The second arm length | mm | 1500 |
| The scope of work | Unit | FMYG75-5 |
| MAX digging dept | mm | 3530 |
| MAX digging radius | mm | 6095 |
| MAX dumping height | mm | 3925 |
| MAX digging height | mm | 5560 |
| Radius of surface mining | mm | 6200 |
| The maximum vertical digging depth | mm | 2450 |
| Description | Unit | FMYG75-5 | |
| Work weight | kg | 7100 | |
| Bucket capacity | M3 | 0.3-0.4 | |
| length * width * height | mm | 6300x2100x3000 | |
| Engine | Model | Weichai | 4102 |
| Rated power/speed | Kw/rpm | 47/2400 | |
| Maximum torque | n.m | 209 | |
| Specific fuel consumption | g/kw.h | ≤251 | |
| Fuel tank capacity | L | 140 | |
| The hydraulic system | Main pump | DOOSAN | T5VP2D28 |
| The rated pressure | Mpa | 22 | |
| Rated flow | L/min | 2x60+39+10 | |
| The main valve | SUNJIN | BCV65/12 | |
| Hydraulic oil tank capacity | L | 150 | |
| Hydraulic motor | Rotary motor | SUNJIN | K60 |
| Walking motor | | Shanghai Qidong A2F63 | |
| Specification | Swing motor | rpm | 0-11 |
| Traveling speed | Km/h | 0-20 | |
| Maximum traction | kn | 60 | |
| Grade ability | ° | 30 | |
| The cab | 1180x960x1620 | ||
| Rotary support | QND730 | ||
| tire | 825-16 | ||
| transmission | 10T transmission | ||
| Drive axle | 1061 | ||
| Main dimensions | Unit | FMYG75-5 |
| On the platform overall width | mm | 1785 |
| Radius of gyration platform | mm | 2000 |
| Satisfying the height from the ground | mm | 1000 |
| The minimum clearance from the ground | mm | 240 |
| Wheel base | mm | 1490 |
| The wheelbase | mm | 2050 |
| Movable arm length | mm | 3100 |
| The second arm length | mm | 1500 |
| The scope of work | Unit | FMYG75-5 |
| MAX digging dept | mm | 3530 |
| MAX digging radius | mm | 6095 |
| MAX dumping height | mm | 3925 |
| MAX digging height | mm | 5560 |
| Radius of surface mining | mm | 6200 |
| The maximum vertical digging depth | mm | 2450 |
