FMDG260 Mobile material handling machine

Power:Diesel and electro-hydaulic
Move type: crawler or wheel or stationary
Grab type choices: log grab,timber gripper,wood grapple,rubbish grabbiing,clamshell bucket,brick grasper,steel seize ects
Boom length: Can be designed as demand
Quantity:
A s the  professional m aterial handling machinery manufacturers,  FOTMA 's  grasping feeder series products are widely applied in areas such as scrap steel, timber, log,  bulk goods handling operation ,steel mills,recycling ects, . At the m ean time FOTMA  will also provide targeted  and  high - quality material handling solution  according to customer ’ s  request .  T he  log  cargo is one  good  example.
In the traditional steel, or steel bay pier, steel pipe, steel and other steel handling operation generally rely on tyre crane . G antry crane is complete Tyre crane and gantry crane operations need  4-5  workers to cooperate on steel chains, loading and unloading and positioning work .  I n addition  that  the efficiency is very low .  T he biggest drawback is soft cable connection  which could bring the trouble  or even irreparable accidents may happen.

FOTMA  machine technology team aiming at the traditional steel pipe, steel and other steel handling operation encountered bottleneck gives a very constructive solutions:  FOTMA  large machine (such as A954C HD) configuration vacuum suction cups for steel pipe handling operation and configuration of magnetic chuck on steel plate, steel billet handling operation, configuration of steel coil sling steel coil loading and unloading operations.
New catch feeder solution not only greatly improve the efficiency of the loading and unloading of steel,  but also guarantee  the security and stability in the process of getting  the  homework for customers to create the high economic benefits.

1.Parameter
Item   Unit  FMDG260
Work weight kg 23200
Engine Model Yuchai YC6B125-T20
Power/Speed Kw/rpm 92/2200
 Max.torque n.m 463
Displacement L 6.871
Specific fuel consumption g/kw.h ≤215
Hydraulic tank capacity L 180
Motor Model
Y250M-4
Power KW 55
Speed rpm 1480
Hydraulic system  Main pump Kawasaki K3V63DT
Rated flow L/min 2X120+30
Working pressure  Mpa 31.5
Main valve Parker AV-170
Hydraulic tank capacity L 210
Hydraulic motor Travel  Doosan TM22
Swing Korea SUNJIN  SDS140C
Performance parameter Swing speed rpm 0-12
Max pulling force kn 113
Travel speed Km/h 0-4
Max Gradient ° 26
Ground pressure kpa 39.4
Cabin   Overall dimensions mm 1800x1000x1620
swing support  Orbital diameter mm 1012
Wheels and track EX series
Cylinder Zhucheng longyuan oil cylinder, the south Korean technology import seal

2.Main dimension
 Main dimensions(mm) FMDG260
  Upper full width (not including body foot pedal) 2490
  Cabin wide 1000
  Cabin height 2930
  Tail swing radius 2200
Balance weight height from the ground 920
Min.clearance to the ground 440
Distance from guide pulley to driven wheel 2780
Track length 3800
Track distance 2000
Track pads width 600
Track width with 600mm track 2600
Boom length 5000
Stick length 3500
Bucket Capacity 0.45m⊃3; Clamshell Scrap job
1.3m⊃3;Multi-tine grab capacity â‰¤1.8tons
Max. grabbing height 6160
Max. grabbing radius 8250
Max.grasping height when fetching radius 3830
Max. grabbing depth 6715
Crawl radius maximum crawl depth 4665

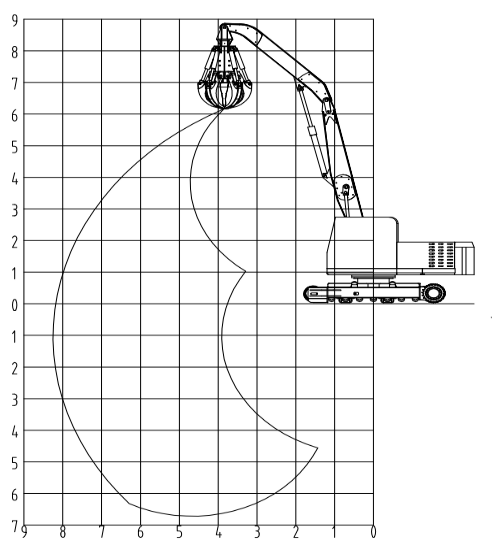

3.Drawing
11111111111111
