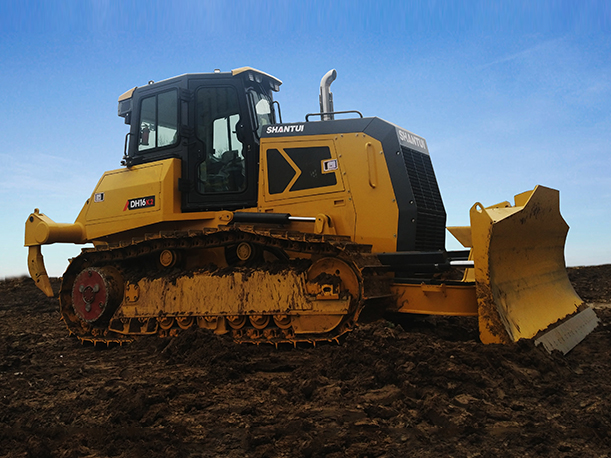

DH16K2 SHANTUI Bulldozer 160HP with EPA Engine USA EPA TIER 4 FINAL/EU Stage IV
ENGINE MODEL:
FPT N67 US EPA TIER 4 FINAL/EU STAGE IV
2.Introduction
Power System
● The installed N67 electronic control engine conforms to the EPA Tier4 final/EU Stage Ⅳ emission regulation, featuring stronger power and higher energy-saving and environmental-friendliness. The after-treatment system adopts HI-eSCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.
● The Shantui’s innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user’s choice depending on the load of actual working condition to realize the reasonable match among power, efficiency, and energy consumption.
Standard mode - It can provide strong power performance and excellent operating control performance for the operator.
Power mode - It can provide stronger power performance to meet your higher needs for heavy-load condition.
3.Specification
| Parameter name | DH16-K2 XL (Extended version) | DH16-K2 LGP(Low ground pressure version) |
| Performance parameters | ||
| Operating weight (Kg) | 17635kg/38879lb (With drawbar) | 18800kg/41447lb (With drawbar) |
| Ground pressure (kPa) | 50 (With 560mm track shoes)/45.9 (With 610mm track shoes) | 36.9 |
| Engine | ||
| Engine model | N67 | N67 |
| Rated power/rated speed (kW/rpm) | 142/2100 | 142/2100 |
| Overall dimensions | ||
| Overall dimensions of machine (mm) | 5800*3400*3180 | 5800*4011*3180 |
| Driving performance | ||
| Forward speed (km/h) | 0-10 | 0-10 |
| Reversing speed (km/h) | 0-10 | 0-10 |
| Chassis System | ||
| Center distance of track (mm) | 2040 | 2350 |
| Width of track shoes (mm) | 560/610 | 810 |
| Ground length（mm） | 3075 | 3075 |
| Tank capacity | ||
| Fuel tank (L) | 389 | 389 |
| Working device | ||
| Blade type | PAT(Power Angle Tilt) | PAT(Power Angle Tilt) |
| Digging depth (mm) | 675 | 675 |
| Ripper type | Three-shank ripper | Three-shank ripper |
| Ripping depth (mm) | 492 | 492 |
