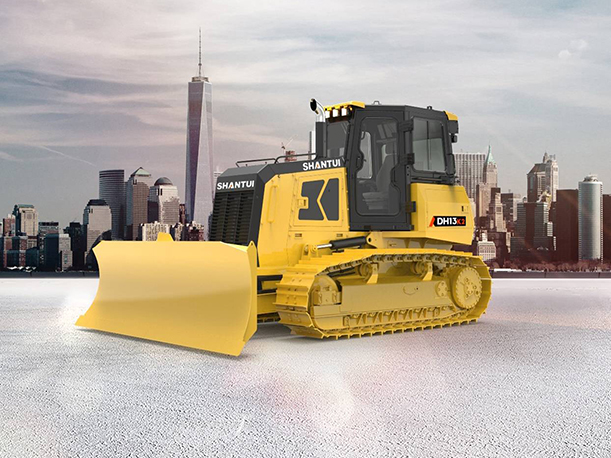

DH13K2 SHANTUI Bulldozer 130HP with EPA Engine USA EPA TIER 4 FINAL/EU Stage IV
ENGINE MODEL:
FPT N67 US EPA TIER 4 FINAL/EU STAGE IV
2.Introduction
Power System
The installed N67 electronic control engine conforms to the EPA Tier4final/EU Stage IV emission regulation, featuring stronger power and higher energy-saving and environmental-friendliness. The after-treatment system adopts FPT's unique HI-eSCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.
The Shantui's innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user's choice depending on the load of actual working condition to realize the reasonable match among power, efficiency, and energy consumption.
Standard mode - It can provide strong power performance and excellent operating control performance for the operator.
Power mode - It can provide stronger power performance to meet your higher needs for heavy-load condition.
Economic mode - Under medium-load/light-load condition, it can run the engine at relatively low speed to thus remarkably reduce the fuel consumption. Meanwhile, in event of power need, it can quickly increase the speed to save the fuel by 5%~20%. The specific condition depends on the application condition.
The air suction type temperature controlled fan incorporates the reverse self-cleaning function, featuring high efficiency and energy-saving.
3.Specification
| Parameter name | DH13-K2 XL (Extended version) | DH13-K2 LGP(Low ground pressure version) |
| Performance parameters | ||
| Operating weight (Kg) | 14200kg/31306lb (With traction frame) | 14800kg/32628lb (With traction frame) |
| Ground pressure (kPa) | 48 | 36.9 |
| Engine | ||
| Engine model | N67 | N67 |
| Rated power/rated speed (kW/rpm) | 118/2200 | 118/2200 |
| Overall dimensions | ||
| Overall dimensions of machine (mm) | 5010*3380*3110 | 5010*3680*3110 |
| Driving performance | ||
| Forward speed (km/h) | 0~10km/h(6.2mph) | 0~10km/h(6.2mph) |
| Reversing speed (km/h) | 0~10km/h(6.2mph) | 0~10km/h(6.2mph) |
| Chassis System | ||
| Center distance of track (mm) | 1930 | 2150 |
| Width of track shoes (mm) | 560 | 760 |
| Ground length(mm) | 2640 | 2640 |
| Tank capacity | ||
| Fuel tank (L) | 263 | 263 |
| Working device | ||
| Blade type | Power Angle Tilt | Power Angle Tilt |
| Digging depth (mm) | 460 | 460 |
| Ripper type | Three-shank ripper | Three-shank ripper |
| Ripping depth (mm) | 500 | 500 |
