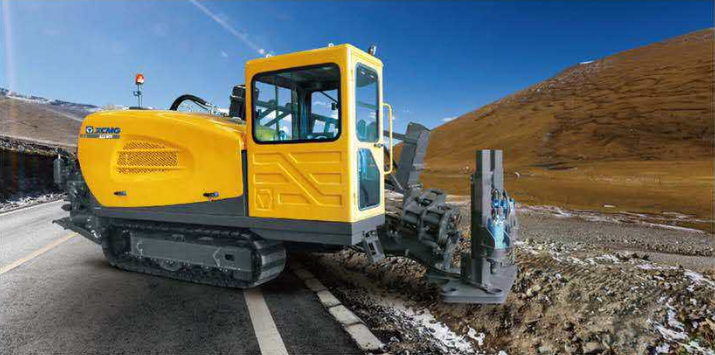

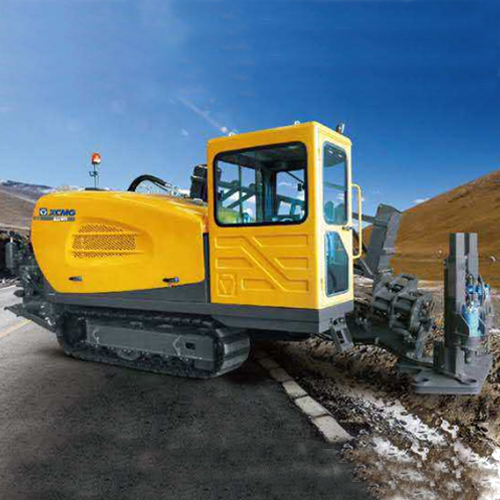

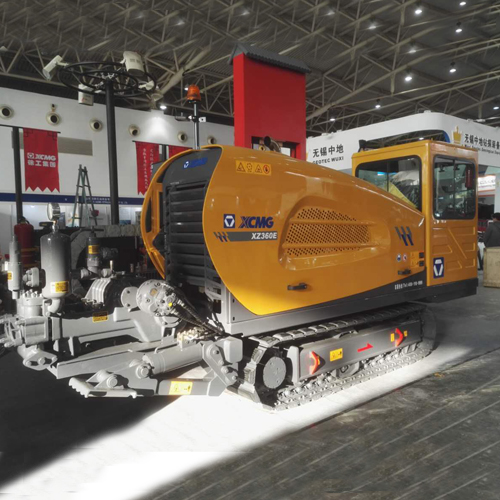

XZ360E XCMG Horizontal Directional Drilling Rig

Max Rotation Torque 13200 N.m
Engine Power 154 Kw
Max Push&pull Force 370 kN
Suitable Pipe Size 73/83mm*3m

Quantity:
XZ360E XCMG Horizontal Directional Drilling Rig Technical Specification

Product Model:XZ360E XCMG Horizontal Directional Drilling Rig

Manufacturer:Xuzhou Xugong Foundation Construction Machinery Group Co.; Ltd.

XZ360E XCMG Horizontal Directional Drilling Rig structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, travel system, and the main components are made of leading domestic and foreign products, good performance, good reliability.


ONE.Features Introduction

1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.


2. Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

3. High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.

4. Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes (φ73), ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.

5.
Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.

TWO.  Technology Introduction

1. Engine System

Choose Dongfeng Cummins turbocharged engine, strong power, emissions meet China III emission standard.
Engine type QSB5.9-C210
Rated power 154kW
Max torque 820N.m /(1400r/min)
Rated speed 2200r/min
Emission standard China III


2. Power Head

The XZ360E XCMG Horizontal Directional Drilling Rig completed by rack and pinion sliding action, floating carriage device can effectively protect the drill thread, variable-speed motor to achieve sliding.


Travelling speed 25m/min
Spindle torque (Max) 13200N·m
The maximum stroke 3800mm

3. Hydraulic System

Using a hydraulic pilot control, hydraulic components are domestic first-class brand. Most important parts of hydraulic system are made of leading domestic and foreign products, good performance, good reliability. Five pumps coordinated action to complete the working, a reasonable allocation of engine power.


4. Chassis

XZ360E XCMG Horizontal Directional Drilling Rig uses classic H-beam structure, high quality rubber track, site adaptability, high reliability, breaststroke leg structure, large cylinder support, good stability, Eaton traveling device, stable performance, walking speed can reach 2.6km /h.


Track width 2240 mm
Rubber track width 400 mm
Tread 2140mm
Supporting wheels quantity 2×6 units
Gradeability 30%
Walking speed 2.6km/h
Ground pressure 63kPa

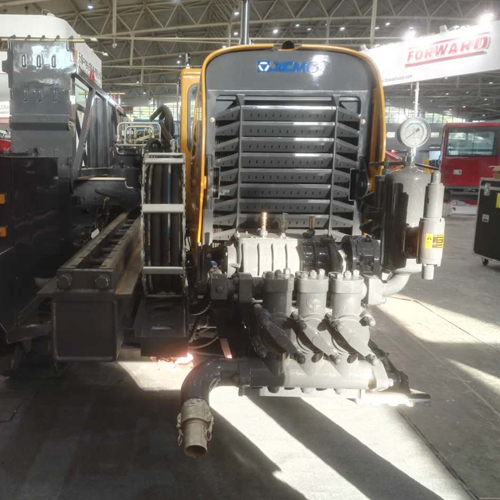

5. Mud Systerm

400L mud pump with a large flow, can meet most of the construction needs, winter construction can be increased with antifreeze systems with mud and mud cleaning system for the whole routine maintenance.

Mud maximum flow 400L/min

Mud maximum pressure 80bar


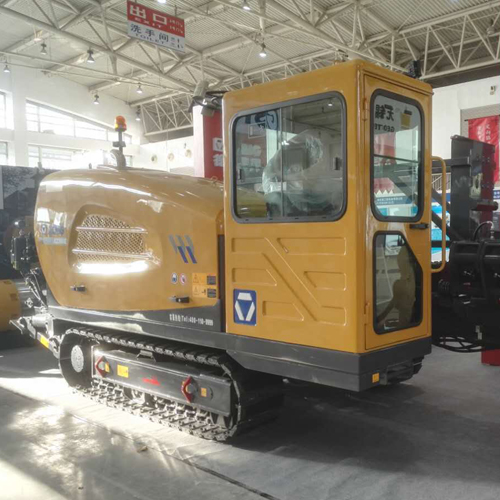

6.Console and Cab(Optional)

Collaboration with professional bodies, cab, console ergonomics analysis and research, fully considered during the operation operator comfort and instrument layout is reasonable, can be increased with the cab, air conditioner, reduce labor intensity, improve the efficiency of the operator.


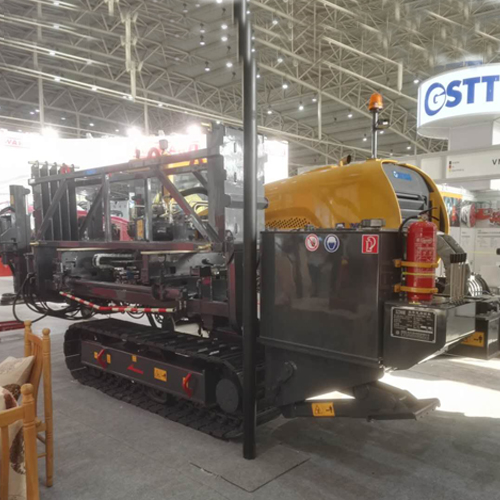

7.Pipe Loading system(Optional)

XZ360E XCMG Horizontal Directional Drilling Rig can option configuration with the automatic semi-automatic pipe loader, used rotating structure to achieve handling drill semi-automatization, also can option automatic full-automatic pipe loader, to achieve handling drill automation. Optional Full-automatic pipeloader, Drilling box can accommodate 40 piece of φ73×3000 drill pipes or 27 piece of φ83×3000 drill pipes , this system can add pipe capacity for long distance construction efficient automation construction, reduce construction costs and labor intensity.

Note:This Full-automatic pipeloader must use φ73/83×3000 drill pipes with monolithic type

8.Anchor(Optional)

XZ360E XCMG Horizontal Directional Drilling Rig with normal anchor, also can option automatic anchor help push and drill, highly automated and great power, reduce labor intensity.

9. Drill and Drilling Tools(Optional)

XZ360E XCMG Horizontal Directional Drilling Rig with Drill and Drilling Tools have good performance and stable quality to make sure construction successfully. Other accessories of
XZ360E XCMG Horizontal Directional Drilling Rig are configured as follows:

XZ360E XCMG Horizontal Directional Drilling Rig Technicial Specification
Name          Form Specification Remarks
Drilling pipe Integral 73/83mm×3m XCMG
Reamer Welded type
Squeezed style 300mm XCMG
400mm
500mm
600mm
700mm
800mm
900mm
Runner type 300mm
400mm
500mm
700mm
800mm
900mm
Drilling Tools Drill guide 73/83 XCMG
Starting lever 73/83
Guide plate 73/83
Torques 73/83
L-nut 73/83
Male slider 73/83
Female slider 73/83
Splitter 40t
pup joints 73/83
Mud system Mud Mixing System 2cbm Shanghai


3cbm
Instrument Guide Instrument F1 Falcon  US DCI
Falcon
F5
GL 350 Golden Land
GL 600
Detector
Radio Detection


XZ360E XCMG Horizontal Directional Drilling Rig Main Technician Parameter
Item

Unit Parameter
Engine Manufacturers
/ Dongfeng Cummins

Model / QSB5.9-C210
EU Stage IIIA Rated Power kW/r/min 154 /2200
Thrust-Pull Type
/ Pinion and Rack drive
Max thrust-pull force
kN 370/370
Max thrust-pull speed
m/min 25
Rotation Type
/ Four Motor
Torque
N·m 13200
Max spindle speed
r/min 140
Pipe Diameter × Length
mm×mm φ73/83×3000
Mud pump Max Flow rate
L/min 400
Max pressure
MPa 8
Weight

kg 10500



Four Main Part Configuration

XZ360E XCMG Horizontal Directional Drilling RigMain Part Configuration
Name Manufacture factory
Engine Dongfeng Cummins
Main Pump Permco
Auxiliary Pump  Permco
Rotary Motor Eaton
Reduction Box INI Hydraulic
Hand Shank Eaton


FIVE Transport Program

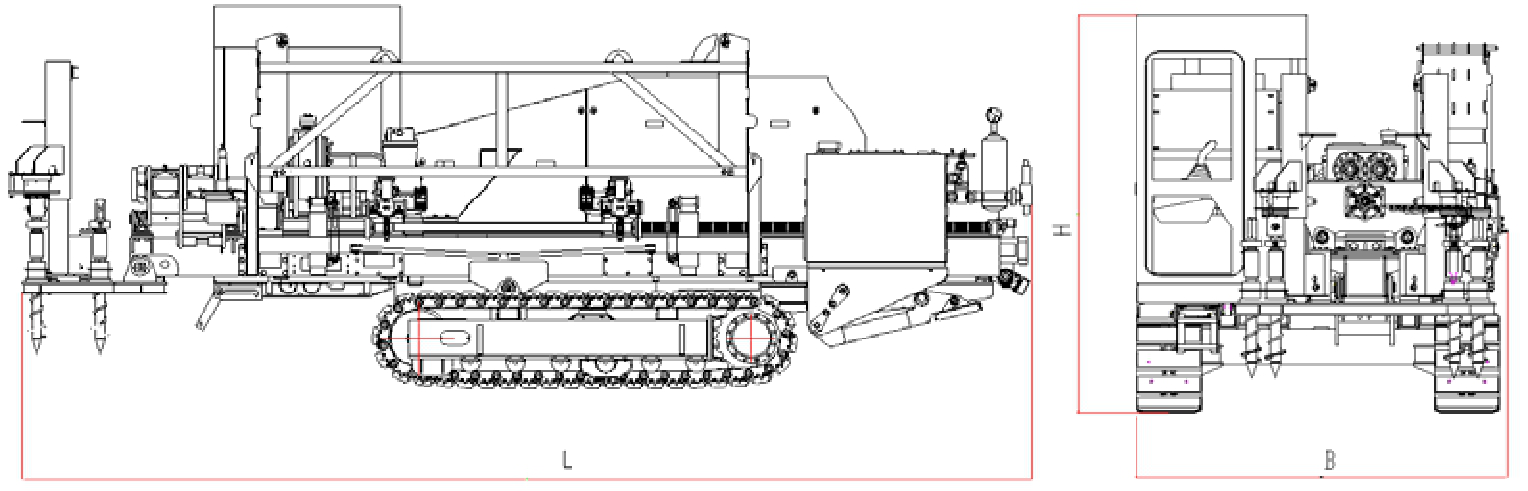

XCMG horizontal directional drilling rig transportation

Machine transportation Dimension 6200×2280×2450mm

Shiping weight(Simple,Free of Drill and Drilling Tools)                                          10.5t
Shiping weight(Optional Cab,Pipe Loader,Free of Drill and Drilling Tools)            11.5t



SIX Accompanied Attached Documents

XZ360E XCMG Horizontal Directional Drilling Rig machine start when accompanied by the packing list, include the following technical documents
Product Certificate

Product Manual
Engine Specification
Engine Warranty
Mud Pump Instruction Manual

Packing List (including wearing parts and spare parts inventory, vehicle tools inventory, shipping list with items)

SEVEN Main Machine Configuration


 Items Optional XZ360E Optional
Engine Engine National
QSB5.9-C210

Cold start
Anchor Simple anchor
Single automatic anchor /
Double automatic anchor /
Mud system Mud antifreeze /
Mud cleaning /
Pipe Loader Semi automatic pipe loading /
Automatic pipe loading /
Cab Simple canopy
Cab and air conditioner /
√-Normal □-Optional  /-No-assembled



With the continuous improvement of technology, we are unable to inform you of the product change effectively!
