XCMG LW300FN wheel loader

Rated Power: 92kW@1900rpm
Engine Model: YC6B125-T21
Operating Weight:10000 kg
Rated bucket 1.8M3

Quantity:
Lowest price LW300FN XCMG Wheel Loader

Rated Power: 92kW@1900rpm
Engine Model: YC6B125-T21
Operating Weight:10000 kg
Rated bucket 1.8M3

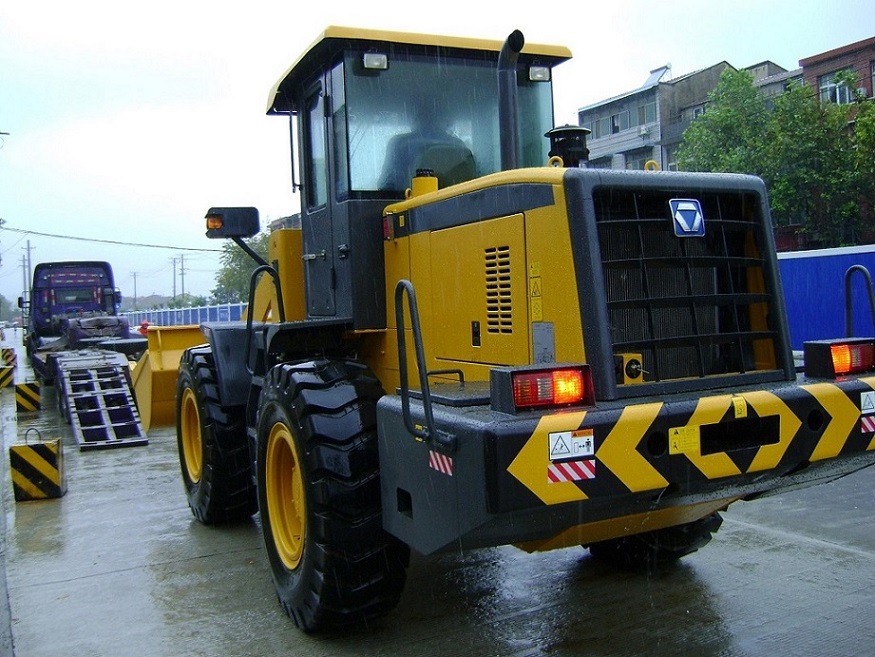

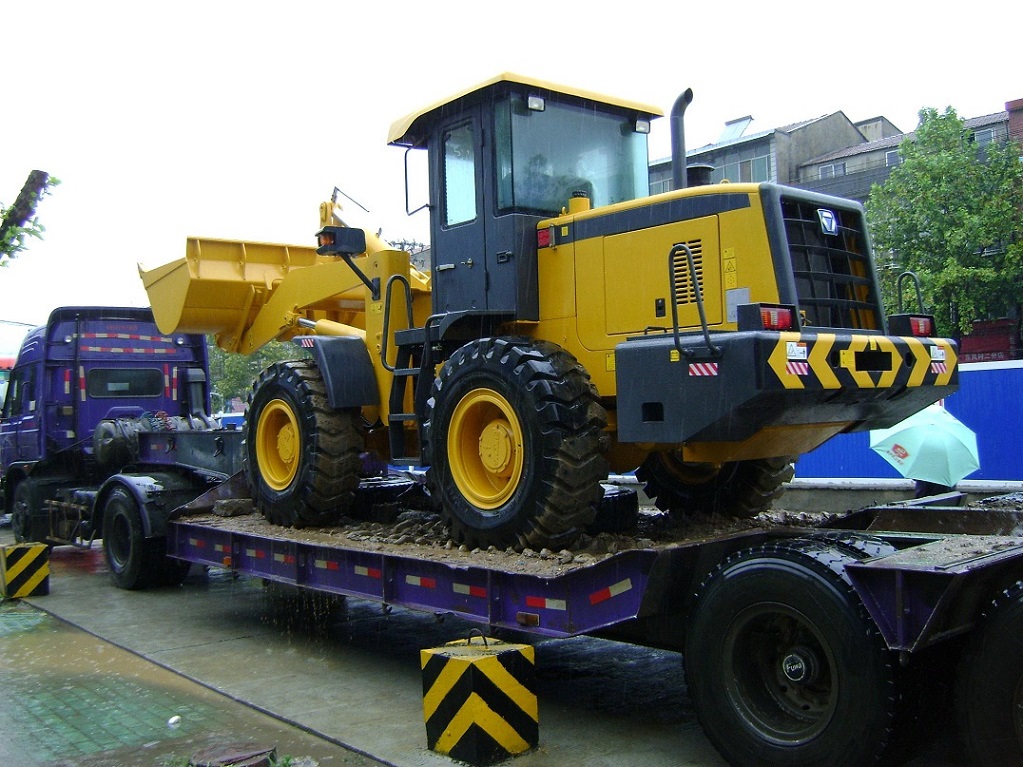

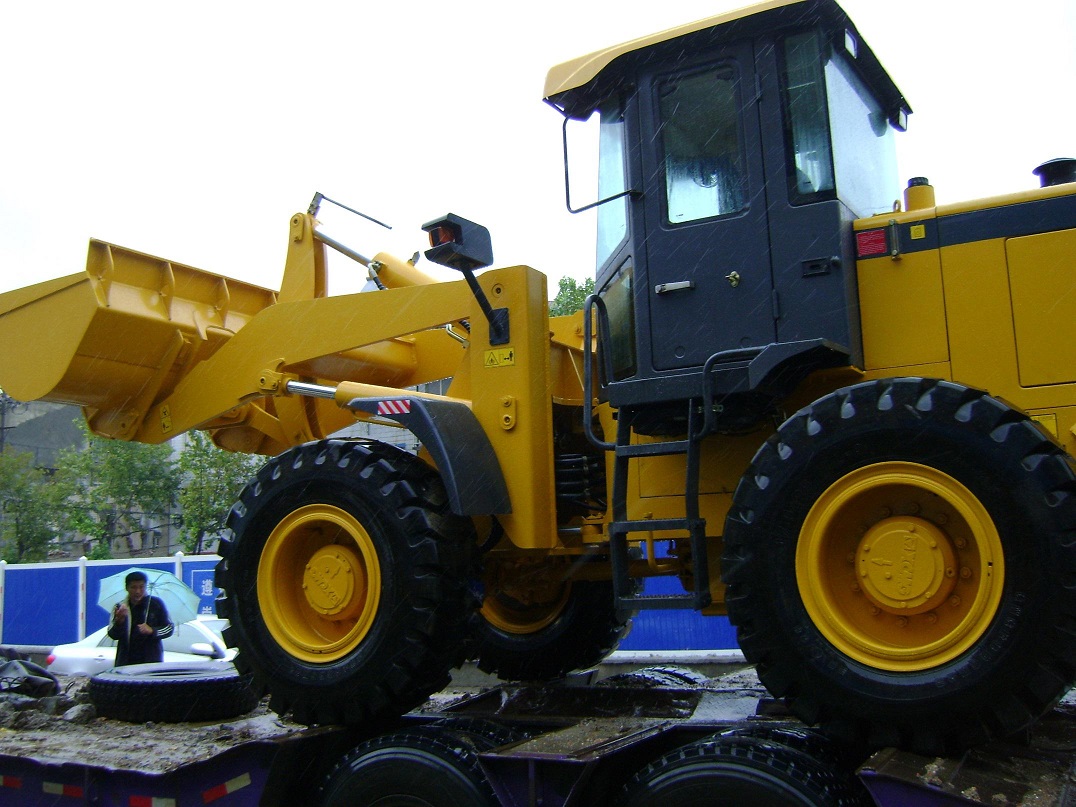

1 Photos
图片2图片3图片4

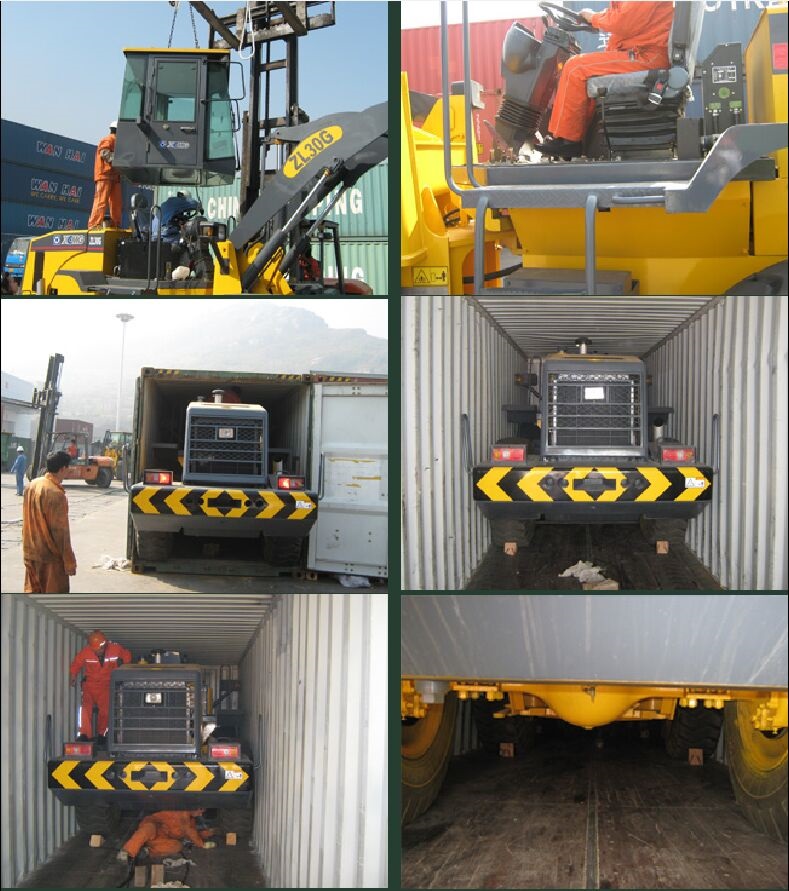

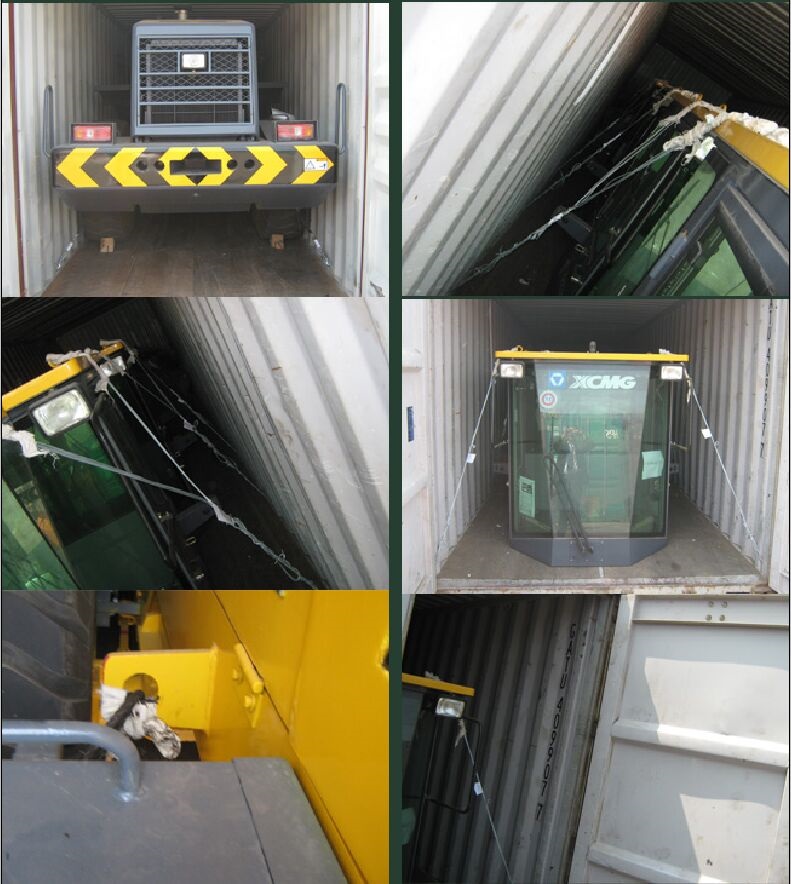

Situation in the container
11111111111
22222222
2.Introduction


LW300FN wheel loader is XCMG for the market for loader comfort and appearance requirements increase, the user loading machine reliability and performance requirements to improve, developed in the LW300F based on a new model. Major improvements include: comprehensive upgrade of the hydraulic system, lifting a substantial increase in capacity, enhances the strength of the frame, bucket type to improve the. Cab structure of the new, luxurious interiors, covering parts stamping steel structure, electrophoretic coating process, coating modeling.


1, power system


By Yuchai YC6B125-T21 engine, the power increase 92kw, energy saving and environmental protection, strong power, meet China stage II emission standards. At the same time increase the water cooling area, overcome the problem of high temperature, is conducive to the reliability of components and system improvement. Pressure measuring device, temperature measuring device with electronic sensing system, the user repair and maintenance more convenient.


2 transmission system


The transmission part adopts the fixed shaft power shift gearbox and single-phase three element torque converter is connected with 4 forward speeds and 2 backward gear multi gears, which can meet the different speed. The fixed shaft type gear box has the advantages of high reliability, long service life, high transmission efficiency, simple structure, convenient manufacture and maintenance, with the advantages of portability, shifting balance. In addition to meet the requirements of the torque converter torque of the structure, with 3 power interface, can simultaneously drive 3 attachments (such as pump, steering pump) to work together to improve the dynamic performance of the whole machine, stable transmission. The maximum traction force 90KN.


3, hydraulic system


The reliable of the split flow of single pump, the load sensing steering technology, using a high pressure and large discharge pump, integrated distribution valve, manual control, system has the advantages of high efficiency and energy saving. Boom lift cylinder diameter increased by 110mm for 125mm, the lifting capacity increased by 30%, three and the same time. Double sealing pipeline to reduce leakage and improve the reliability. The pressure point, the pressure measuring device, convenient detection and maintenance of hydraulic system.


4, work unit


Working device of the overall optimization design, so the machine has strong lift force and digging force, maximum digging Likeda 120kn, all kinds of pin shaft using special materials, special heat treatment process, high strength, good abrasion resistance, long service life. The new bucket type, the insertion of small resistance, high coefficient of full scoop.


5, front and rear frame


Hinged frame in the joint bearing, ensure the reliability of the hinged front and rear frame. The continuation of the structural characteristics of XCMG products and rear frame is still used reliable single plate girder structure, through the finite element analysis of improved structural strength, make the machine more safe and reliable. With large weight, fuel tank rear, greatly improve the stability of the whole machine, tipping load and breakout force. The sub frame structure, more suitable for different road conditions and. The rear axle swing angle, can effectively avoid the hanging wheel in the potholes work phenomenon.


6, electrical system


Electrical system adopts advanced batteries and electrical components, with the domestic advanced instrument, has the advantages of beautiful appearance, convenient operation and maintenance, all switch control, instrumentation, lighting set alarm indication as a whole, the high precision and high reliability of instruments and sensors, special lighting.


7, brake system


With the vehicle braking and parking brake, the driving brake adopts the gas cap oil caliper disc type four wheel brake, and has the advantages of stable and reliable braking, safety, reliability, simple structure and convenient maintenance.


8, control system


The variable speed control system is improved, the operation is more convenient and accurate, and the labor intensity of the operator is reduced. The accelerator pedal valve and flexible operating mode, the throttle is more comfortable and flexible.


9, cab


The new structure of the cab, the use of automobile manufacturing process, die stamping, pulse welding, the appearance and the car as beautiful. All glass, windshield, wide field of vision. A new type of six direction adjustable vibration damper, in compliance with safety standards and ergonomics, the ride is more comfortable. A variety of rubber sleeve to make the driver's chamber sealing better. The new shape of the interior using a hot press molding, which uses the sound insulation of the plant fiber board (natural degradation), the outer layer of the use of heat insulation of the hollow fiber, the outermost layer of the high density PVC.


10, engine hood


The streamlined, with skeleton structure, die stamping process, beautiful appearance, and to ensure that the engine cover the overall strength and stiffness, and the arc weights and battery to form an organic whole. The whole hood phosphating, electrophoretic coating, keep the car color for a long time. At the same time, the gas spring control side door opening mechanism enhances the performance of the whole machine maintenance.


3.Specification
Item  Parameter  Unit
Rated load 3 t
Bucket capacity 1.8 m3
Dumping height 2892 mm
Dumping distance 1104 mm
Max. drawing force >120 kN
Max. traction >90 kN
Dimension (L * W * H ) 6905*2470*3028 mm
Operating weight 10 t
Boom lifting time 5.65 s
Total time of three devices 10.3 s
Wheelbase 2600 mm
Min. turning radius (bucket outer) 5925 mm
Rated power 92 km/h
Travel speed I Gear (Forward/Backward) 0~10/14 km/h
II Gear (Forward/Backward) 0~16/25 km/h
III Gear (Forward) 0~21 km/h
IV Gear (Forward) 0~35 km/h
Boom Parameter
Bucket capacity 1.5/1.8 m3
Rated load 2.6/2.6 t
Dimension (Length * Width * Height) 7226*2470*3028 mm
Dumping height 3253/3200 mm
Dumping distance 1051/1142 mm
Operating weight 10.2/10.2 t
Attachment parameter-grasping grass
Dumping height 2948 mm
Dumping distance 2036 mm
Clamp body width 2200 mm
Max. opening 2800 mm
Attachment parameter-clamp(III)
Dumping height 2551 mm
Dumping distance 837 mm
Min. circle diameter 590 mm
Max. opening 1700 mm
Attachment parameter-side dump
Bucket width 2650 mm
Dimension 7.25*2650*3028 mm
Dumping height(straight/side) dumping 2725/3524 mm
Dumping distance(straight/side) dumping 1109/175 mm
Lifting height(straight/side) dumping 4980/5928 mm
Attachment parameter-Sliding fork
Fork folding angle 17.2'
Attachment length 1575 mm
Attachment width 1980 mm
Attachment height 1200 mm
Fork teeth length 1050 mm

4.Warranty

Hubei Fotma Machinery Co.(Supplier) offers the following limited warranty on wheel loader which measure up to the (customer name) in (Territory). The warranty system executes according to the ISO9001 standard.

Our company warranty obligation of the wheel loader are as followings.

INCLUSIONS - ITEMS COVERED BY WARRANTY

(a) The warranty period of the products is one year, which begins from the day the products are received by customer or one month after products leave China port. During this valid period, we will supply warranty parts caused by quality problem during the warranty period. Users will buy the spare parts caused by unsuitable using method.
(b) This warranty covers defects in materials or workmanship only.
(c) The engine and gearbox, transmission are included in the warranty parts. If the defect or failure can be repaired by replacing a parts of the assembly, the dealer/User have no excuse to ask for replacing the whole assembly.
(d)The warranty period of Air Conditioning system, battery, electrical component(excluding bulk),start motor, generator, tyres, rubber seals, hydraulic pipes is 6 months or 1200 hours only(Take standard of the one expiring firstly)
  (e) In order to do the after-sale service well, we will warranty to deliver technical information of wheel loaders and attached implements required by users.

EXCLUSIONS - ITEMS NOT COVERED BY WARRANTY

(a) Failure to adhere to and/or comply with operation manual instructions will void all associated warranty obligations.
  (b) The damage occurs in the transportation other than in the agreement transportation distance.
(c) Artificial damages. Any repairs or replacements required as a result of misuse, negligence, and abnormal or insufficient care.
  (d) Damage caused by the force majeure.
  (e) Parts that easy to be damaged.
  (e) This warranty does not cover:
     • Pickup or delivery of the equipment
     • Rental of replacement equipment during the repair period
     • Products which have been declared a total loss and subsequently salvaged
     • Labor charges
     • Freight charges for returned parts
     • Travel time or mileage
     •Local transport cost in Territory

Consignation of parts

The defect or failure parts have to be sent back to supplier if any warranty confirm firstly,the supplier then send replacing parts to dealer at suppiler’s cost in proper transport methord.

  Users Responsibility

(a) It is the users’ responsibility to maintain the equipment in accordance with the instructions provided in the Operator’s Manual. We recommend that you keep records and receipts; you may be asked to prove that the maintenance instructions have been followed.
  (b) It is also your responsibility to operate the equipment in a safe manner, and for the use for which was designed. If a defect in materials or workmanship occurs, it is your responsibility to cease operating the equipment until repairs are made. Damage, which occurs from continued operation, may not be covered by this warranty.

Quality question that has not involved in the above provision should be consulted by mutual agreement.
