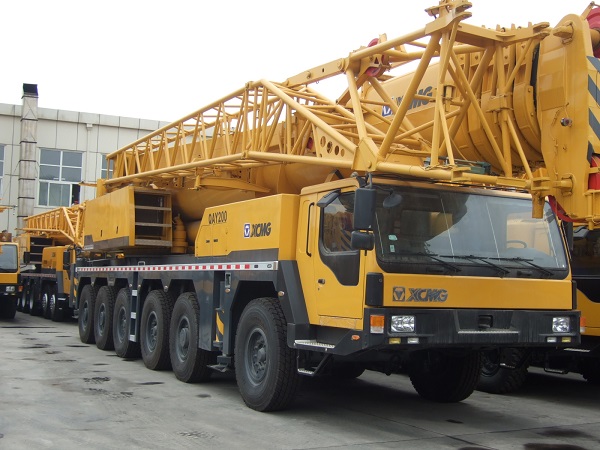

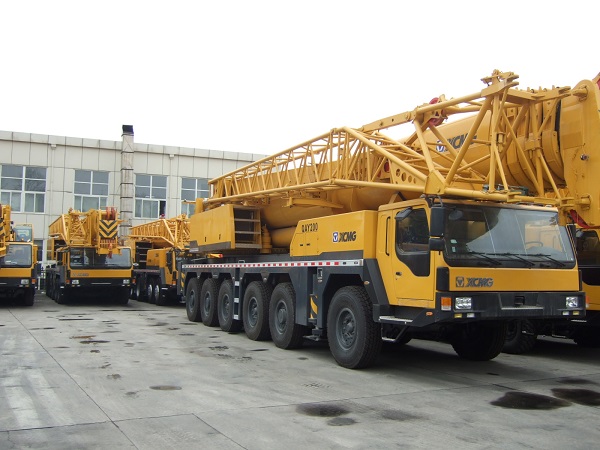

QAY200 200 ton All Terrain Truck crane

Rated Load 200 ton
Engine Power 192KW + 390KW

Quantity:

QAY200 All Terrain Truck Crane Specifications

Model: QAY200
Max. lift load:200t
Max. lift moment:6774kN.m
Length:16130mm
Width:3000m
Height:4000m
Weight:71000kg(travel state)

Highlight

1.Mature all terrain oil-gas suspension system.The first,second,third,fifth,sixth axles steering,the second,fifth,six axles driving.Chassis steering flexible and driving strengthened.

2.Uniquely “U” cross-section,light self-weight,high tensile strength,strong bearing.

3.Advanced embedded arm head,Structure high strength,large lower slid block area and it has better thrust surface and telescopic more smoothly which can prevent the torsion of the boom after the lateral loading

4.Mature and advanced single cylinder bolt telescopic system

5.Unique self loading and unloading, multi-combination balance weight system.

6.Unique "vice jib auxiliary power installation device" patent technology.

7.Intelligent fault self diagnosis system.

8.Excellent welding technology for structural parts,the key welding seam of the machine is welded by welding manipulator,Advanced technology,reliable quality.

9.Hydraulic hard pipe adopts imported seal to prevent leakage and aging.

ONE.Technology Introduction

1.Chassis
XCMG design and manufacture of professional full-width cab with a 6-axle chassis, driving/steering mode is 12X6X10,the maximum speed of 71km / h;
Driving / steering: 12 × 6 × 10;
Climbing degree: 48%。

1.1 Frame
XCMG design and manufacture of specialized, optimized weight ratio, anti-torsion box structure, import high-strength steel. Leg contraction in a special box, the box is located between the first bridge and second bridge, and at the rear frame.The frame also has front and rear towing hooks.

1.2 Engine of Chassis

QAY200 All Terrain Truck   Crane
Manufacturer: Mercedes-Benz
Model OM502LA. III/ 3
Type: Power control, V-shaped ,eight-cylinder, water cooled, turbocharged, EFI and diesel engine;
Output power: 390kw/1800rpm;
Maximum torque: 2400Nm/1080rpm;
Environmental protection: in line with Euro III emission standards;
Fuel tank capacity: 500L

1.3 Transmission

1.3.1  Gear box
Original Germany ZF 16AS2602 gear box. With 16 forward gears and two reverse gear, ratio range, to meet the low grounds and climbing can also meet the high speed driving. Mechanical gearbox automatic control, automatic and manual control options, automatic and manual control displays the current gear to replace gear.


1.3.2 Transfer case
Imported transfer case, large output torque. Rated torque up to 30000N.m. With a differential lock cylinder.Mechanical three axle structure.Installed with emergency steering oil pump,when crane was drag powered off,it still have power steering.

1.3.3 Axle
1,3-axis steering output shaft, shaft for the steering shaft 2,6, 4-axis non-drive steering axle, drive shaft through 5-axis turning, 2, 6-axis pulley differential and differential lock between 5 shaft axis between the differential and differential lock.
First axle :single wheel,only steering,no driving.
Second axle:single wheel,steering,driving.
Third axle:single wheel,only steering,no driving.
Forth axle:single wheel,no steering,no driving
Fifth axle:single wheel,steering and driving.
Sixth axle,Sing wheel,steering and driving.

1.3.4 Driving Shaft
Optimized drive shaft arrangement, shaft drive smoothly and reliable. Optimum power transmission, the use of face gear coupling shaft, large transmission torque, up to 43500Nm.

1.4 Axle suspensions
Oil suspension, each bridge bears the load equivalent to no more than 12t. Hydraulic leveling system, the chassis can be raised or lowered 150mm.

1.5 Steering
Use the German ZF ZF7421 steering, hydraulic power system to protect the steering light and flexible. Shift in the form of 12X10, 1, 2, 3, 5, 6-axis turning.

1.6 Tire
All terrain crane specially tyre 12.00,385/95 R25 14.00R25 Michelin for heavy duty vehicles.

1.7 Brake
Driving brake: dual circuit air brake, acting on all wheels;
Parking brake: spring energy storage brake, acting on the 2-6 axis of the wheel;
Brake Assist: The engine-assisted braking, safety and reliability, to extend the life of brake linings.

1.8 Chassis cabin

New steel cabin, excellent shock absorption and closed, both sides of the swing-out doors. full vision width cab, spacious. Excellent interior comfort, safety glass configuration, three wipers, great view mirrors, electric washing windows, electronic doors and windows lifts, with the advanced CD audio. Air pilot and copilot seats, adjustable multiple locations. Control equipment and instrumentation is complete, ergonomic layout of the program. height and angle of the steering wheel adjustable, glove compartment, fire extinguisher.
Air conditioning: heat from the engine heater, defrost the windshield. Refrigeration and air conditioning.

1.9 Hydraulic system
Dosing pumps connected to the power take off through the engine to control the steering and hydraulic outrigger.

1.10 Outriggers
QAY200 All Terrain Truck Crane 4 support, horizontal and vertical hydraulic outrigger control, electric control console mounted on the chassis side, the level of luminous instrument console mounted cranes for leveling, and light and growth rate button. Stretching mode for the two horizontal legs, legs feet store with vertical legs slide under the device. Outrigger crane designed to lift the entire body so that the crane in a variety of working conditions and better jobs. (Do not need the fifth leg of the case can be completed full-circle 360 jobs);
Support area: Portrait of about 9.625m, horizontal about 8.7m

1.11 Electrical Equipment
Using 24V DC; national standard electrical system with a complete automotive lighting systems; vehicle movements, such as throttle, legs manipulation is achieved by electrical control, the action light and fast; electrical system has a strong testing, logic , computing capability, with fault self-diagnosis, centralized display and self-protection;
Chassis using CAN bus system, which has a data fast, stable, accurate, etc.; versatile centralized display system; high degree of protection, IP65; small power consumption, the maximum is only 5w; in the user interface provides five function keys; display using LCD, effective area 115 x 86, contrast adjustable; with printer port

1.12 Tools
Each crane is with one set of repair tools.

2. Crane
XCMG Three-row roller slewing ring connected on the bus and get off (chassis), 360 ° continuous full rotation, the track roller slewing ring sealed waterproof dust.

2.1 Crane engine
Manufacturer: Volvo TAD720VE Euro Ⅱ (or TAD750VE Euro Ⅲ);
Type: Inline six-cylinder, water cooled, turbocharged diesel engine;
Rated power: 162kw (or 180 kw);
Environmental protection: meet Euro II emission standards;
Fuel tank capacity: about 200L

2.2 Turntable
XCMG manufacturing, single-stand plate and local box-shaped structure, greater overall stiffness and strength, the force in good condition, the exposure to external forces can be well distributed, high-strength steel welded frame torsional structure. Import quotas and high-strength steel strength and good, high carrying capacity. Side of the locking pin installed hydraulic turntable for installation of driving on and off and adjust the balance weight fixed at the installation location

2.3 Hydraulic system
Independent hydraulic system on the car for open-variable system, the variable way for constant power variable; rotary pump control for the closed system. In addition to enabling the turning, luffing crane, telescopic, raised the main and sub volume rise functions, but also to achieve a balance weight lifting, rotating cab, turntable locking function;
Manipulate the way the car electronic control pilot control, A8V dual-pump for constant power variable on the car lifting, luffing, and stretching. Rotary gear pump for the vehicle. Hydraulic system with variable pump variable (fixed) amount of the motor system, the total power system, the main pump for the oblique axis piston pump, the main lifting mechanism uses two-variable system, the motor for the electric motor. Motor with a pressure shut-off valve, the load is too large to avoid the stall. Closed rotary pump control system, can significantly impact the buffer rotation, while the pump control system with a control efficiency, control components, the system advantages, such as heat; luffing gravity drop method, in the long arm of the whereabouts of stable, low energy consumption than the power down mode has advantages

2.3.1 Oil cooler
Oil cooler with hydraulic system installed in series, so the use of hydraulic oil extended time, improve the service life of hydraulic components.

2.4 Electrical system
Integrated with PLC programmable controller, CAN-BUS bus control network, and combined with conventional electrical complete logic control system and electric proportional control;
In addition to conventional control, but also with real-time monitoring and automatic fault diagnosis;
Lifting, slewing, luffing, telescopic handle by the power ratio to achieve proportional control; counterbalanced by the lift cylinder switch control work, control room work rotating cylinder, rotary locking, air conditioning work;
Monitor connected by a CAN bus and controller, the main function as follows: ① electric proportional control parameter adjustment and digital display. ② power ratio system fault code display. ③ hydraulic system real-time display of test data.

2.5 Main winch
Hydraulic motor driven planetary gear reducer and special rope groove winch drum, built-in brake. Anti-winding rope. Vice-lifting mechanism with a single operation.
Imports of steel wire rope, wire rope locks imported, wire rope end of casting, direct installation kit and lock, the replacement rate increases lifting speed, quick and easy. Maximum magnification of the primary volume 14;
Wire Rope Specifications: D1315CZ-26-1960, imports of non-rotating wire rope;
Rope length: about 280m;
The largest single rope speed (outer layer): about 120m/min

2.6 Auxiliary winch(optional)
Hydraulic motor driven planetary gear reducer and special rope groove winch drum, built-in brake. Anti-winding rope. Vice-lifting mechanism with a single operation.
Wire Rope Specifications: D1315CZ-26-1770, imports of non-rotating wire rope;
Rope length: about 210m;
The largest single rope speed (outer layer): about 130m/min.

2.7 Luffing system
1 differential cylinder with balance valve;
Change Angle: -1 ° ~ 82 °.

2.8 Rotating mechanism
Double rotating mechanism, two side arrangement, axial piston quantitative motor drive planetary gear reducer, disc brake. Rotary speed can be from 0-2rpm, stepless speed regulation.

2.9 Main boom
Arm structure with anti-twist design, high strength structural steel from 1 basic telescopic arm and 5 formed arm of the U-shaped cross section (approximately oval), the boom has a very high stability, support the main arm of the slider can be adjusted. Telescopic cylinder automatic bolt system uses a double acting cylinder can control all the crane, telescopic, arm length to achieve a variety of combinations. The long arm length is set to each section telescopic full extension of 46%, 92% and full extension;
Standard configuration for the 8 arm-side pulley, the maximum lifting capacity of the basic arm 200t.
Arm length: 13.8m ~ 61 m

2.10 Operator cabin
Corrosion of glass reinforced composite structure, safe and comfortable, fully enclosed, equipped with safety glass, windows with sun visor, swing-out doors, seat back tilt control member position with the joystick mounted on the arm of the seat back connection , ergonomics regulation. The large front window with wiper. Standard manipulation of the control components and indicators, according to the rational distribution of ergonomics. On the train control room can be tilted back 20 ° to observe the height of the lifting conditions.
Air conditioning: heat from the engine heater, defrost the windshield. Refrigeration and Air Conditioning.

2.11 Safety device
Hydraulic System: Hydraulic Valves, hydraulic relief valve, hydraulic two-way lock to protect the hydraulic system stable and secure;

2.12 Counter weight
It’s Combined variable counter weight. It has 0t, 22t, 32t, 42t, 65t five kinds of combinations, to meet the needs of different conditions, to maximize the performance of structural components. Self-handling function remote control with manual, hydraulic crane counterweight installation device in the tail turret.

Counter weightA, 1 Unit, weight 12500kg;
Counter weightB, 2 Unit, weight 10000kg;
Counter weightC, 1 Unit, weight 9500kg;
Counter weightD, 2 Unit, weight 11500kg;

2.13 Jib
Basic jib truss, truss section for the rectangular structure, Section II for the box-shaped structure, the section length of 11.55m, two total length of 20m; three kinds of variable installation angle, 0 °, 15 °, 30 °; jib crane installation to install the right side of folding for easy folding jib.
Matching two of 16m jib extension.

2.14 Hook

Lift 200t, 1 Unit, weight 2410kg;
Lift 125t, 1 Unit, weight 1586kg;
Lift 65t, 1 Unit, weight 990kg;
Lift 30t, 1 Unit, weight 500kg;

2.15 Crane Central lubrication
Centralized lubrication system using the German welfare birds produced progressive lubrication system, the vehicle maintenance easier and convenient. Dispenser plunger movement by promoting the supply of oil, followed by sports, the oil squeeze to a lubrication points, lubrication points assigned to sufficient oil

3 Color
Vehicle colors are as follows:
Crane chassis, wheel along: dark gray;
Cab, crane car: Engineering yellow;
Two layers of paint including primer, paint with acrylic paint as the base.

Performance data see product specifications

QAY200 All Terrain Truck Crane Main parts list


No. Name Model Manufacture
1 Crane engine TAD720VE VOLVO
2 Chassis engine OM502LA BENZ
3 Gear box 16AS2602 German ZF
4 Transfer case   German ZF
5 steer   German ZF
6 Steer axle, drive axle   Germany Kai Silan
7 tire 14.00R25 Michelin Shanghai double coin
8 Crane hydraulic pump   imported
9 Chassis hydraulic pump F1-61R Parker of the U.S.A.
10 Level cylinder QAY200.59 Zhangjiakou Great wall cylinder factory
11 Vertical cylinder QAY200.59 Zhangjiakou Great wall cylinder factory
12 Slewing bearing   Xuzhou Rothe Erde
13 Rotating bodies   Bosch Rexroth,Italy Dana Micronesia
14 Rotate motor A2F28W2Z8 Bosch Rexroth
15 Hoisting mechanism   Bosch Rexroth Italy Dana Micronesia
16 Hoist motor   Bosch Rexroth
17 Telescopic cylinder   Chengdu cylinder factory
18 Luffing cylinder QAY200.28 Chengdu cylinder factory
19 Hoist balance valve   Bosch Rexroth
20 Luffing balance valve   Buch of German
21 Telescopic balance valve 53000 Zhejiang shengbang factory
22 Multi-way valve   Jiangdu / Zhejiang shengbang
23 PAT IFLEX5 Hirschman(PAT)
24 joystick   P+G
25 Tube Fitting   From Germany or U.S.A.
26 Cylinder seal kit   German NOK
27 Bearings of telescopic boom   Japan NSK / NTN
28 Wire rope of main boom   German
29 Wire rope of hoist   German DIEPA
30 steel WELDOX960 Sweden

QAY200 parameter

Table 1 specifications of crane travel state
  Item Unit parameter
dimensions Overall length mm 16130
Overall width mm 3000
Overall height mm ≤4000
Wheel base Axle1-2 mm 2750
Axle2-3 mm 1650
Axle3-4 mm 2000
Axle4-5 mm 1650
Axle5-6 mm 1650
track mm 2590
Weight Weight of travel state kg 71000
Axle load Axle 1 and 2 kg 11750
Axle 3 and 4 kg 11850
Axle 5 and 6 kg 11900
Engine Crane engine Model   TAD720VE
Rated output kw/(r/min) 162/2100
Rated torque N.m/(r/min) 854/1400
Rated speed r/min 2100
Chassis engine Rated output kw/(r/min) 390/1800
Rated torque N.m/(r/min) 2400/1200
Rated speed r/min 2000

travel
Travel speed Max. km/h 71
Min. km/h 2.1
Min turning diameter m ≤24
Min. ground clearance mm 278
Approach angle ° 25
Departure angle ° 18
Brake distance(speed 30km/h) m ≤10
Max. grade ability % 48
Fuel consumption for 100km l 80

Table 2 Crane Technical Parameters at working status
  Item Unit parameter

specifications
Max rated lift capacity t 200
Min working radius m 3
Turning diameter at tail (counter weight) mm  5070
Max. lift moment Base boom kN.m 6774
Longest Main boom kN.m 2752
Outrigger spam longitudinal m 9.625
lateral m 8.7(6.5)
Working Height Base boom m 14.5
Longest main boom m 61.5
Main boom + jib(11.55m)   73.8
Main boom + jib (20m) m 82.1
Boom length Base boom m 13.8
Longest main boom m 61
Main boom + jib(11.55m) m 72.55
Main boom + jib (20m) m 81
Jib angle ° 0  15 30
Working speed Luffing time Boom up s 60
Telescopic time extend s  450
Pull back s  450
Max. rotate speed r/min  1.9

Outrigger telescopic time
Level outrigger telescopic s  50
Pull back s  40
Vertical outrigger telescopic s  50
Pull back s  45
Hoist speed
(single line)
Main winch No load m/min 120
Auxiliary winch No load m/min 110
outside radiation dB(A) ≤118
Driver radiation dB(A) ≤90

Table 3 QAY200 Main boom load chart            unit:t
65t counter weight, Outrigger extend

   boom(m)
radius(m)
13.8 18.1 22.5 26.8 31.2 35.5 39.9 44.2 48.5 52.9 57.2 61
3 200
3.5 185 120
4 170 118 115 98
4.5 153.6 115 112 95 78
5 138.2 110 104.5 91 75 61
6 114.7 105 92.5 85 72.5 60 50
7 97.4 98.4 84 78 68 57 48.5 41
8 84.2 85.3 73.5 72.5 63 52 45.2 39 32.5
9 73.8 74.9 68 65.5 57 48 43.2 37 32 26.5
10 65.4 66.5 61 58 53 45 40.6 35 31 26 22.5
11   59.5 57 53 49 42 38.2 33.8 30 25.5 21.2 19.4
12   53.3 53 48 47 40 36.2 32.5 28.6 24.8 20 18.2
14   43.5 44.6 43 42 35 31.6 28.9 26 23.2 18.5 16.8
16     36.5 37.4 37 31 28.5 26 23.6 21.4 17 15.5
18     29.9 30.7 31.7 28 25.8 23.5 21.6 19.6 15.6 14.5
20       25.6 26.6 25.5 23.5 21.2 19.6 18.1 14.4 13.5
22       21.7 22.6 22.5 21.8 19.2 18 16.8 13.4 12.5
24         19.4 20.5 19.5 17.6 16.5 15.5 12.5 11.5
26         16.8 19.2 18.3 16.5 15.2 14.5 11.7 10.8
28           17.2 16.1 15.2 14 13.4 11 10
30           15.3 14.2 14.2 13 12.2 10.5 9.2
34             11.2 11.6 11.2 10.5 9.5 7.8
36             9.9 10.3 10.5 9.6 8.5 7.2
38               9.3 9.6 8.8 7.5 6.8
40               8.3 8.8 8.4 6.8 6.2
42                 7.9 7.8 6.5 5.9
44                 7.1 7.5 6.2 5.6
46                   7 5.9 5.3
48                   6.5 5.4 5
50                     5 4.7
52                     4.7 4.4
54                       4.1
56                       3.8
angle(°) 31-72 29-75 28-77 27-79 26-80 16-80 17-80 18-79 18-79 19-79 19-79 18-78
Hook 200t(2410kg) 125t(1586kg) 65t(990kg) 30t(500kg)
Rope rate 16 9 9 7 6 5 4 3 3 2 2 2

Table 4  QAY200 load chart for jib(outrigger extend)
65t counter weight—outrigger extend,boom11.55m

Boom (m) 44.2 48.5 52.9 57.2 61
Jib (m) 11.55 11.55 11.55 11.55 11.55
angle
elevation(°)
15° 30° 15° 30° 15° 30° 15° 30° 15° 30°
82 12.0 8.3 6.0 12.0 8.3 6.0 12.0 8.3 6.0 12.0 8.3 6.0 12.0 8.3 6.0
80 12.0 8.3 6.0 12.0 8.3 6.0 12.0 8.3 6.0 12.0 8.3 6.0 12.0 8.3 6.0
78 11.5 8.0 5.9 11.5 8.0 5.9 11.5 8.0 5.9 11.5 8.0 5.9 11.5 8.0 5.9
76 10.8 7.7 5.7 10.8 7.7 5.7 10.8 7.7 5.7 10.8 7.7 5.7 10.8 7.7 5.7
74 10.3 7.4 5.5 10.3 7.4 5.5 10.3 7.4 5.5 10.3 7.4 5.5 10.3 7.4 5.5
72 9.8 7.1 5.3 9.8 7.1 5.3 9.8 7.1 5.3 9.8 7.1 5.3 9.8 7.1 5.3
70 9.4 6.8 5.2 9.4 6.8 5.2 9.4 6.8 5.2 9.4 6.8 5.2 9.4 6.8 5.2
68 9.0 6.5 5.1 9.0 6.5 5.1 9.0 6.5 5.1 9.0 6.5 5.1 9.0 6.5 5.1
66 8.6 6.2 5.0 8.6 6.2 5.0 8.6 6.2 5.0 8.6 6.2 5.0 8.6 6.2 5.0
64 8.2 6.0 4.9 8.2 6.0 4.9 8.2 6.0 4.9 8.2 6.0 4.9 8.2 6.0 4.9
62 7.9 5.8 4.9 7.9 5.8 4.9 7.9 5.8 4.9 7.9 5.8 4.9 7.9 5.8 4.9
60 7.6 5.6 4.7 7.6 5.6 4.7 7.6 5.6 4.7 7.6 5.6 4.7 7.6 5.6 4.7
58 7.3 5.4 4.6 7.3 5.4 4.6 7.3 5.4 4.6 7.3 5.4 4.6 7.3 5.4 4.6
56 7.0 5.2 4.5 7.0 5.2 4.5 7.0 5.2 4.5 7.0 5.2 4.5 7.0 5.2 4.5
54 6.7 5.1 4.4 6.7 5.1 4.4 6.7 5.1 4.4 6.7 5.1 4.4 6.7 5.1 4.4
52 6.4 5.0 4.3 6.4 5.0 4.3 6.4 5.0 4.3 6.4 5.0 4.3 6.4 5.0 4.3
50 6.2 4.9 4.3 6.2 4.9 4.3 6.2 4.9 4.3 6.2 4.9 4.3 6.2 4.9 4.3
48 6.0 4.8 4.2 6.0 4.8 4.2 6.0 4.8 4.2 6.0 4.8 4.2 5.8 4.8 4.2
46 5.8 4.7 4.2 5.8 4.7 4.2 5.8 4.7 4.2 5.8 4.7 4.2 5.4 4.7 4.2
44 5.6 4.6 4.2 5.6 4.6 4.2 5.6 4.6 4.2 5.5 4.6 4.2 5.0 4.6 4.2
42 5.4 4.5 4.1 5.4 4.5 4.1 5.4 4.5 4.1 5.2 4.5 4.1 4.7 4.5 4.1
40 5.2 4.4 4.1 5.2 4.4 4.1 5.2 4.4 4.1 4.8 4.4 4.1 4.3 4.2 4.1
38 5.0 4.3 4.1 5.0 4.3 4.1 5.0 4.3 4.1 4.5 4.3 4.1 4.1 4.0 3.9
36 4.9 4.3 4.0 4.9 4.3 4.0 4.8 4.3 4.0 4.3 4.1 4.0 3.8 3.7 3.7
34 4.8 4.2 4.0 4.8 4.2 4.0 4.6 4.2 4.0 4.0 3.9 3.9 3.6 3.5 3.5
32 4.8 4.2   4.8 4.2   4.3 4.2   3.8 3.7   3.4 3.3
30 4.7 4.2   4.7 4.2   4.1 4.0   3.6 3.5   3.2 3.2
28 4.6 4.1   4.5 4.1   3.9 3.8   3.4 3.4   3.1 3.0
26 4.5 4.1   4.3 4.1   3.8 3.7   3.3 3.2   2.9 2.9
24 4.4 4.1   4.1 4.1   3.6 3.5   3.2 3.1   2.8 2.7
22 4.3 4.1   4.0 3.9   3.5 3.4   3.0 3.0   2.7 2.6
20 4.3 4.0   3.9 3.8   3.4 3.3   2.9 2.9   2.6 2.5
18 4.2 4.0   3.8 3.7   3.3 3.2   2.8 2.8   2.5 2.5
16 4.2     3.7     3.2     2.8     2.4

65t counter weight —outrigger extend, boom length20m

Boom (m) 44.2 48.5 52.9 57.2 61
Jib (m) 20 20 20 20 20
angle
elevation(°)
15° 30° 15° 30° 15° 30° 15° 30° 15° 30°
82 6.4 3.7 2.5 6.4 3.7 2.5 6.4 3.7 2.5 6.4 3.7 2.5 6.4 3.7 2.5
80 6.2 3.5 2.3 6.2 3.5 2.3 6.2 3.5 2.3 6.2 3.5 2.3 6.2 3.5 2.3
78 5.8 3.3 2.2 5.8 3.3 2.2 5.8 3.3 2.2 5.8 3.3 2.2 5.8 3.3 2.2
76 5.4 3.1 2.1 5.4 3.1 2.1 5.4 3.1 2.1 5.4 3.1 2.1 5.4 3.1 2.1
74 5 2.9 2 5 2.9 2 5 2.9 2 5 2.9 2 5 2.9 2
72 4.6 2.7 2 4.6 2.7 2 4.6 2.7 2 4.6 2.7 2 4.6 2.7 2
70 4.2 2.6 1.9 4.2 2.6 1.9 4.2 2.6 1.9 4.2 2.6 1.9 4.2 2.6 1.9
68 3.9 2.5 1.9 3.9 2.5 1.9 3.9 2.5 1.9 3.9 2.5 1.9 3.9 2.5 1.9
66 3.6 2.4 1.8 3.6 2.4 1.8 3.6 2.4 1.8 3.6 2.4 1.8 3.6 2.4 1.8
64 3.4 2.3 1.8 3.4 2.3 1.8 3.4 2.3 1.8 3.4 2.3 1.8 3.4 2.3 1.8
62 3.2 2.2 1.7 3.2 2.2 1.7 3.2 2.2 1.7 3.2 2.2 1.7 3.2 2.2 1.7
60 3 2.1 1.7 3 2.1 1.7 3 2.1 1.7 3 2.1 1.7 3 2.1 1.7
58 2.8 2 1.7 2.8 2 1.7 2.8 2 1.7 2.8 2 1.7 2.8 2 1.7
56 2.7 2 1.6 2.7 2 1.6 2.7 2 1.6 2.7 2 1.6 2.7 2 1.6
54 2.6 1.9 1.6 2.6 1.9 1.6 2.6 1.9 1.6 2.6 1.9 1.6 2.6 1.9 1.6
52 2.4 1.9 1.6 2.4 1.9 1.6 2.4 1.9 1.6 2.4 1.9 1.6 2.4 1.9 1.6
50 2.3 1.8 1.5 2.3 1.8 1.5 2.3 1.8 1.5 2.3 1.8 1.5 2.3 1.8 1.5
48 2.2 1.8 1.5 2.2 1.8 1.5 2.2 1.8 1.5 2.2 1.8 1.5 2.2 1.8 1.5
46 2.1 1.7 1.5 2.1 1.7 1.5 2.1 1.7 1.5 2.1 1.7 1.5 2.1 1.7 1.5
44 2.1 1.7 1.5 2.1 1.7 1.5 2.1 1.7 1.5 2.1 1.7 1.5 2.1 1.7 1.5
42 2 1.6 1.5 2 1.6 1.5 2 1.6 1.5 2 1.6 1.5 2 1.6 1.5
40 2 1.6 1.5 2 1.6 1.5 2 1.6 1.5 2 1.6 1.5 2 1.6 1.5
38 1.9 1.6 1.5 1.9 1.6 1.5 1.9 1.6 1.5 1.9 1.6 1.5 1.9 1.6 1.5
36 1.9 1.5 1.4 1.9 1.5 1.4 1.9 1.5 1.4 1.9 1.5 1.4 1.9 1.5 1.4
34 1.8 1.5 1.4 1.8 1.5 1.4 1.8 1.5 1.4 1.8 1.5 1.4 1.8 1.5 1.4
32 1.8 1.5   1.8 1.5   1.8 1.5   1.8 1.5   1.8 1.5
30 1.7 1.5   1.7 1.5   1.7 1.5   1.7 1.5   1.7 1.5
28 1.7 1.5   1.7 1.5   1.7 1.5   1.7 1.5   1.7 1.5
26 1.7 1.5   1.7 1.5   1.7 1.5   1.7 1.5   1.7 1.5
24 1.6 1.5   1.6 1.5   1.6 1.5   1.6 1.5   1.6 1.5
22 1.6 1.5   1.6 1.5   1.6 1.5   1.6 1.5   1.6 1.5
20 1.6 1.5   1.6 1.5   1.6 1.5   1.6 1.5   1.6 1.5
18 1.5 1.5   1.5 1.5   1.5 1.5   1.5 1.5   1.5 1.5
16 1.5     1.5     1.5     1.5     1.5

Notice:
1) The rated capacity of the table represents values in the flat solid ground to ensure the crane's maximum weight
2) Rated lifting capacity in the table include the weight of the hook and spreader;
3) The magnitude of the work table include deformation of the crane, including the actual value;
4) The table jib length of each section must be in accordance with the requirements of arm stretching out;
5) The arm end performance with a single pulley lifting jib (11.55m) 0 ° installation angle of the lifting performance;
6) The lifting operation, the suspension system must be in a locked state, and are prohibited from any touch button to adjust the suspension;
7) 75% of tipping load takes into account seven wind, that wind pressure is 125N/m2;
Main boom jib lifting capacity is completely folded, mounted on the side of the calculation of basic values, such as operating with a jib, the weight is reduced from 3500kg.

PHOTOS
QAY200 all terrain truck crane


QAY200 all terrain truck crane

Concerned Article

content is empty!

QUESTION? LET US HELP.
Simple choose a support option from the icons below:
FOLLOW US ON:
